System Architecture | |
| Form Factor | ATX |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Core i9 |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel C246 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI, VGA |
Ethernet | |
| Controller Type | Intel i210-AT, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB 2.0 | 6 |
| USB v3.x | 6 |
Audio | |
| Audio Controller | Realtek ALC662 HD |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| M.2 | 1 |
Extension Slots | |
| Total | 5 |
| PCI Express x16 | 2 |
| PCI Express x4 | 3 |
| M.2 | 2 |
| PCI | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 4xUSB 2.0, 4-pin (12V DC CPU), 24-pin ATX, 5xCOM, 2xUSB 3.0, 6xSATA 3 |

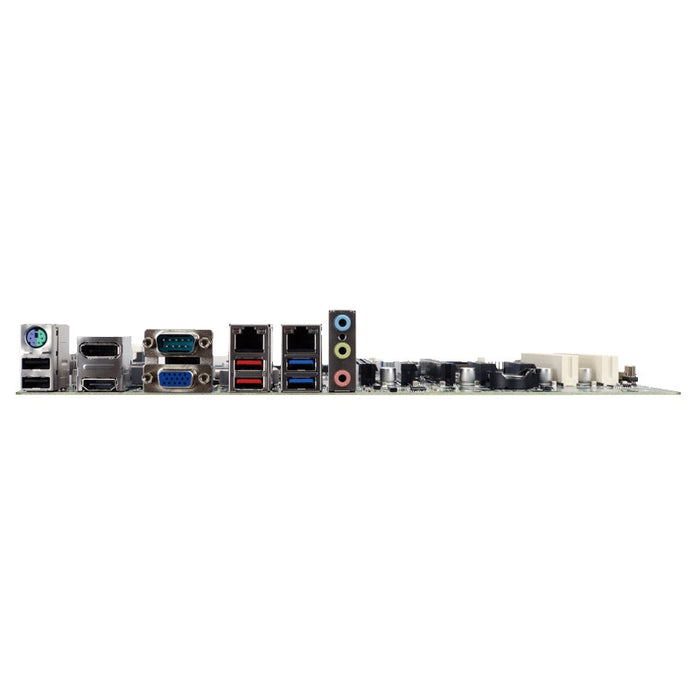

| Connectors | DB9, DB15 VGA, HDMI, 6xUSB, Mic In, Line In, Line Out, Display Port |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 305 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
