System Architecture | |
| Form Factor | ATX |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Core i9 |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel H310 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xDIMM |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in Chipset |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 5 |
| RS-232/422/485 | 1 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC662 |
Extension Slots | |
| Total | 6 |
| PCI Express x16 | 1 |
| PCI Express x4 | 1 |
| PCI | 4 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 4xCOM, LPT, 4xSATA 3, 4-pin (12V DC CPU), 24-pin ATX, Display port |

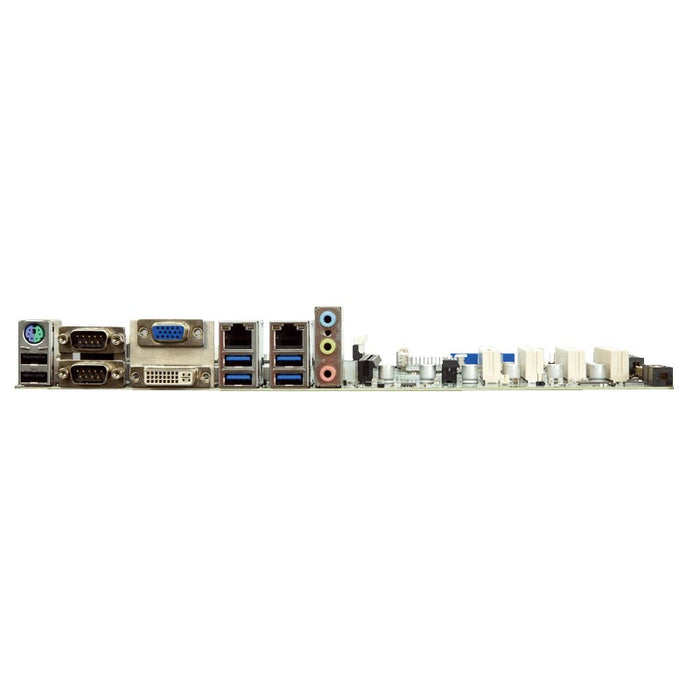

| Connectors | 2xDB9, DVI-D, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 244 mm |
| Length | 305 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
