System Architecture | |
| Form Factor | ATX |
CPU | |
| СPU Generation/Family | Comet Lake, Tiger Lake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Core i9 |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel Q470E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xDIMM |
| Maximum Memory | 128 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i225V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 13 |
| USB 2.0 | 7 |
| USB v3.x | 6 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 9 |
| PCI Express x16 | 1 |
| PCI Express x4 | 3 |
| M.2 | 2 |
| PCI | 3 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xCOM, 4xSATA 3, 24-pin ATX, 5x4-pin USB 2.0, 8-pin ATX |

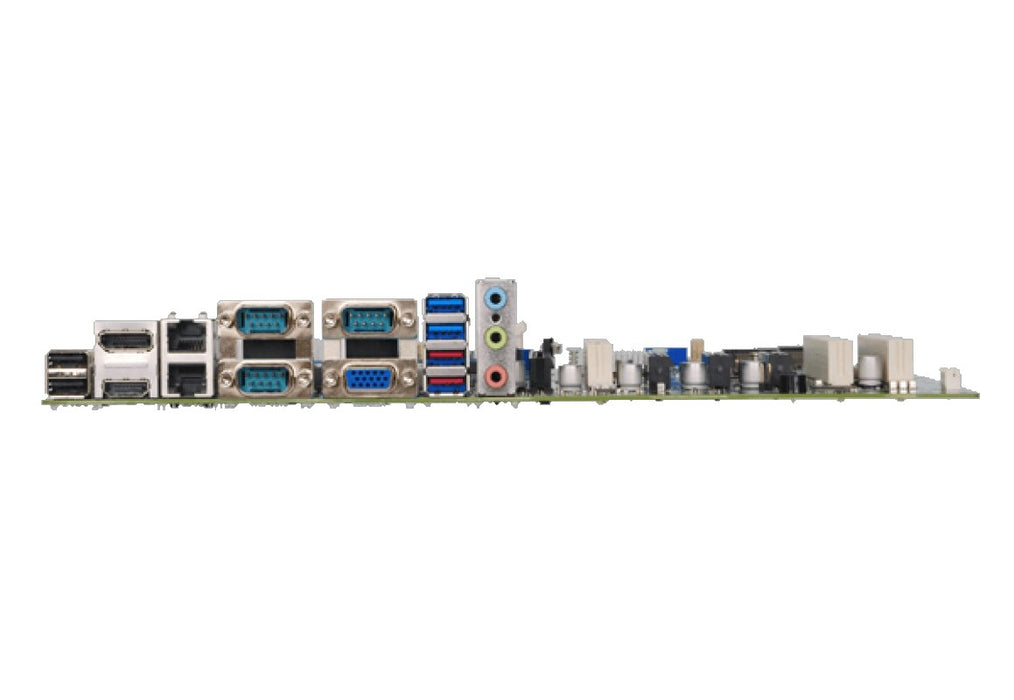

| Connectors | 3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display Port |
Dimensions and weight | |
| Width | 244 mm |
| Length | 305 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
