Ціна за запитом

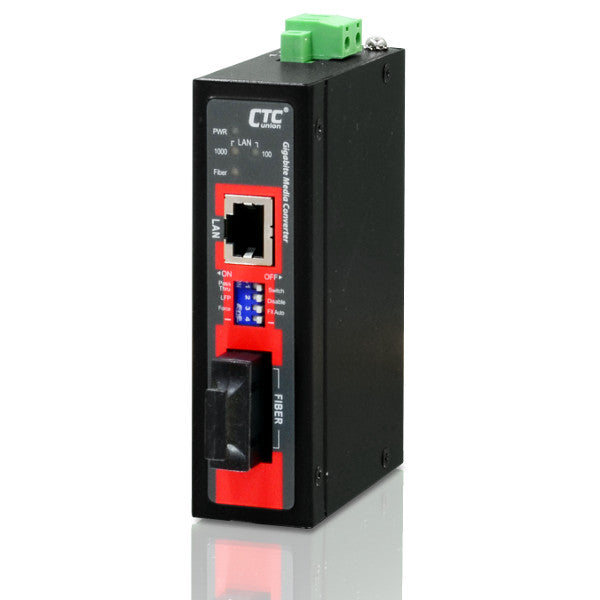

Compact Industrial Unmanaged Gigabit Ethernet Media Converter 10/100/1000 Base-T to 1000 Base-X Optical Single-mode WDM Type B port, Distance 20km, 12/24/48VDC or 24VAC Input Power, -10.. 60C Operating Temperature



Total Ethernet2
10/100/1000 Mbit/s2
Type 10/100/1000 Mbit/s1xSC, 1xRJ-45, WDM


Number of Optical Ports1xSC

LED / Controls

LEDPower LED, 10/100/1000M LED, LNK/ACT LED
Setup of Operation ModeBy Switches


ConnectorsDC input (terminal block)

System Power Input

Input Voltage DC9.6...60 V
Input Voltage AC18...36 V

Operating Conditions

Operating Temperature-10...60 °C


Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width30 mm
Depth70 mm
Height103 mm

Standards and Certifications

EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
FreefallIEC 60068-2-32
Rolling StockEN 50121-4
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
