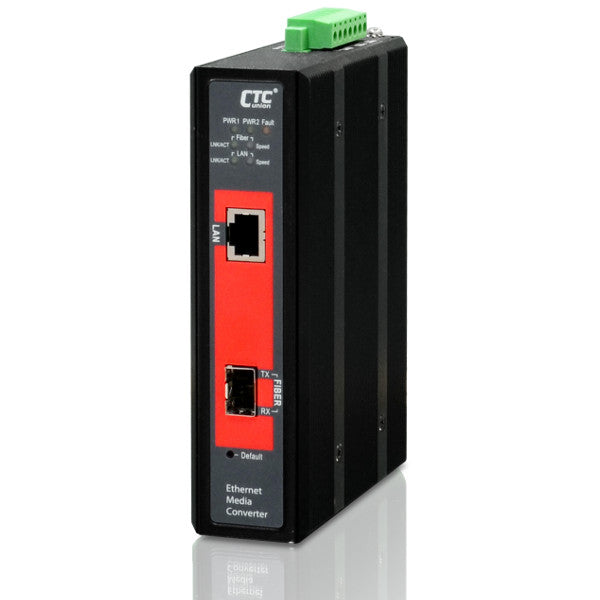

IMC-1000MS-E

Ціна за запитом
Industrial Managed SNMP,Web,Gigabit Ethernet Media Converter 10/100/1000 Base-T to 100/1000 Base-X SFP port, Redundant dual 12/24/48VDC input power, -20.. 75C Operating Temperature

Specification

Ethernet

Total Ethernet2
10/100/1000 Mbit/s1
SFP 100/1000 Mbit Ports1
Type 10/100/1000 Mbit/s1xRJ-45

Digital Output

Total channels of digital output1
TypeElectromagnitic relay
Relay (Form C)1

Supported Protocols

Managment ProtocolsSNMP

LED / Controls

LEDFAULT LED, 10/100/1000M LED, LAN LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation ModeWeb-interface

Connectors

ConnectorsDC input (terminal block)

System Power Input

Input Voltage DC9.6...60 V
Power Supply Reserve input Voltage DC9.6...60 V

Operating Conditions

Operating Temperature-20...75 °C

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width38.6 mm
Depth106 mm
Height142.1 mm

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
FreefallIEC 60068-2-32
Rolling StockEN 50121-4
SafetyUL 60950-1
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
