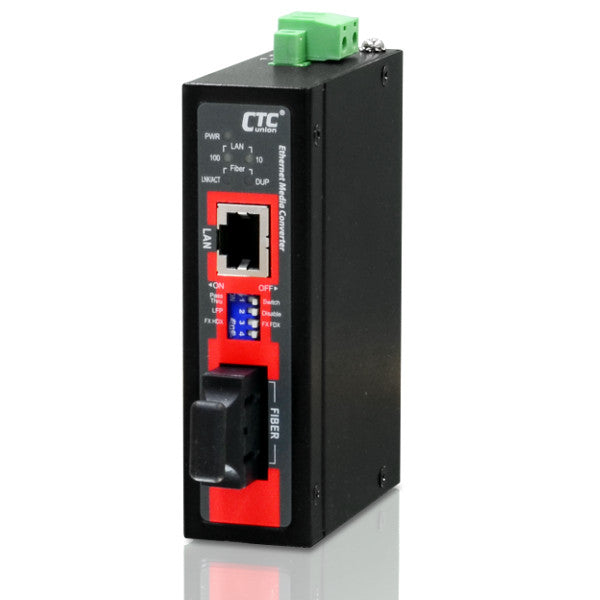

IMC-100C-E-SC002

Ціна за запитом
Compact Industrial Unmanaged Fast Ethernet Media Converter 10/100 Base-TX to 100 Base-FX Optical Multi-mode SC port, Distance 2km, 12/24/48VDC or 24VAC Input Power, -40.. 75C Operating Temperature

Specification

Ethernet

Total Ethernet2
10/100 Mbit/s2
Type 10/100 Mbit/sSC, RJ-45

Fiber

Type of Fibre Opticmulti-mode

LED / Controls

LEDPower LED, 10/100M LED, LNK/ACT LED
Setup of Operation ModeBy Switches

Connectors

ConnectorsDC input (terminal block)

System Power Input

Input Voltage DC9.6...60 V
Input Voltage AC18...36 V

Operating Conditions

Operating Temperature-40...75 °C

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width30 mm
Depth70 mm
Height103 mm

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
FreefallIEC 60068-2-32
Rolling StockEN 50121-4
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
