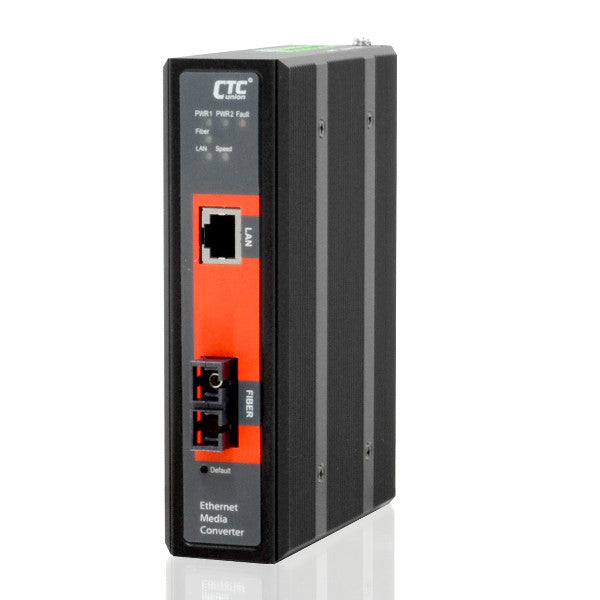

IMC-100M-PHE12-SC050

Ціна за запитом
Industrial Managed Fast Ethernet PoE Media Converter 10/100 Base-TX to 100 Base-FX Fiber Optics Single-mode SC port, Distance 50km, Redundant dual 12/24/48VDC input power, -20.. 75C Operating Temperature

Specification

Ethernet

Total Ethernet2
10/100 Mbit/s2
PoE 10/100 Mbit/s1
Type 10/100 Mbit/s1xSC, 1xRJ-45

Fiber

Number of Optical Ports1xSC
Type of Fibre Opticsingle-mode

Digital Output

Total channels of digital output1
TypeSignal Relay
Output voltage0~24 V

Supported Protocols

Managment ProtocolsDHCP, SNMP, VLAN

LED / Controls

LEDFAULT LED, PoE LED, 10/100M LED, PWR1, PWR2, LNK/ACT LED
Setup of Operation ModeWeb-interface

Connectors

ConnectorsDC input (terminal block)

System Power Input

Input Voltage DC9.6...57 V
Power Supply Reserve input Voltage DC9.6...57 V
Power over Ethernet (PoE)PoE, PoE+, IEEE 802.3af, IEEE 802.3at

Operating Conditions

Operating Temperature-20...75 °C

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP30

Dimensions and weight

Width62.5 mm
Depth106 mm
Height135 mm

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
FreefallIEC 60068-2-32
Rolling StockEN 50121-4
SafetyUL 60950-1
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
