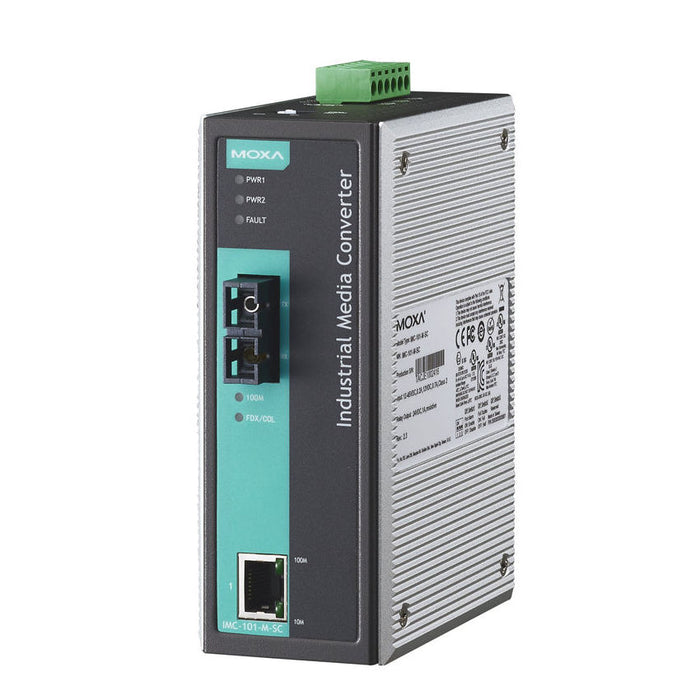

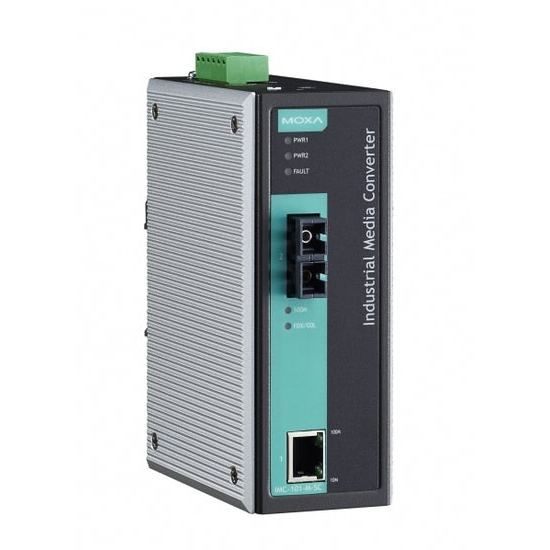

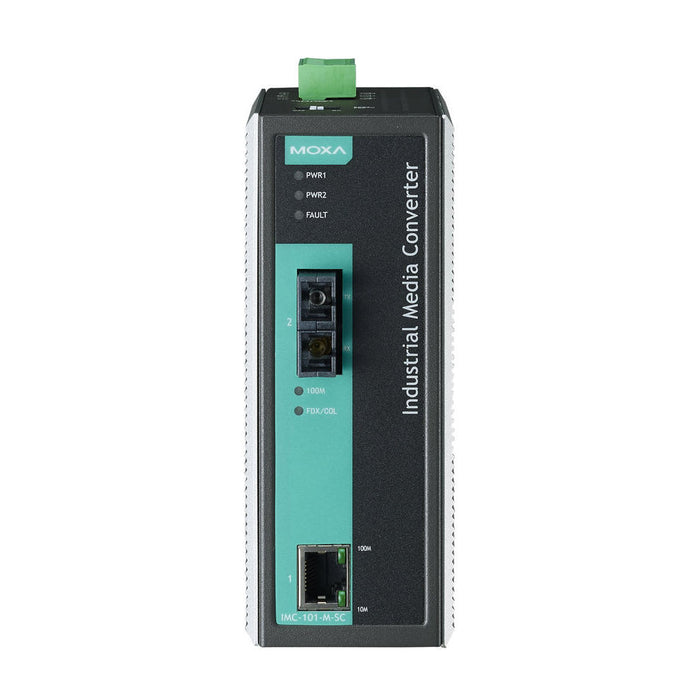

IMC-101-S-SC-80-T

Ціна за запитом
Industrial 10/100Base-Tx to 100-Fx Media Converter, Single Mode, SC Fiber Connector, Long Haul Transmit Distance 80km, Extended Operating Temperature -40...+75°C

Ethernet

Total Ethernet 2
10/100 Mbit/s 2
Type 10/100 Mbit/s SC, RJ-45

Fiber

Type of Fibre Optic single-mode

Digital Output

Total channels of digital output 1
Type Signal Relay
Contact rating of relay (Form A) 1A@24V DC

Supported Protocols

IEEE Standard IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX

Switch Properties

Supported functions Automatic power failure notification, Automatic port failure notification, Link Fault Pass-Through (LFP)

LED / Controls

LED FAULT LED, 10/100M LED, PWR1, PWR2, FDX/COL
Setup of Operation Mode By Switches

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 45 V
Power Supply Reserve input Voltage DC Min 12 V
Power Supply Reserve input Voltage DC Max 45 V

Operating Conditions

Operating Temperature Min -40 °C
Operating Temperature Max 75 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount
Protection Level of Chassis IP30

Dimensions and weight

Width 53.6 mm
Depth 105 mm
Height 135 mm

Standards and Certifications

Certifications CE, WEEE, FCC
Freefall IEC 60068-2-32
Marine grade DNV, GL
Oil And Gas UL/cUL Class I Division 2 Groups A/B/C/D
Safety UL 60950-1, EN 60950-1
Vibration And Shock IEC 60068-2-6, IEC 60068-2-27
