Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Atom E3930 |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Apollo Lake SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
Graphic | |
| Interfaces | HDMI |
Ethernet | |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

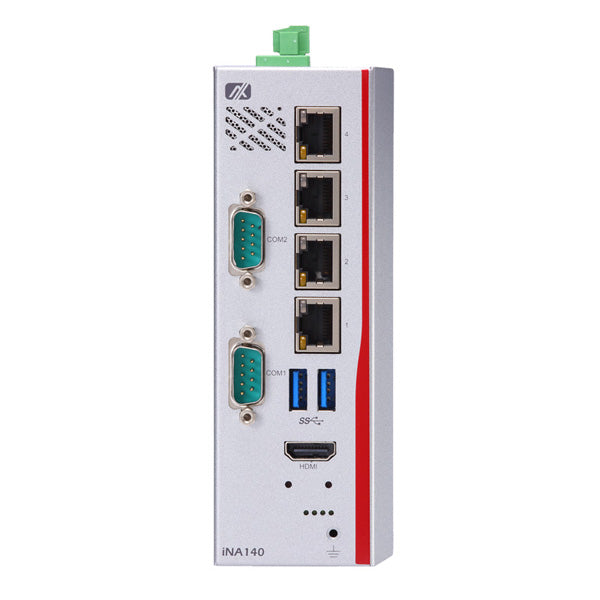

| Connectors | 2xDB9, HDMI, 4xRJ45 Ethernet, 2xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | Direct current |
| Output Power | 36 W |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 150 mm |
| Height | 54 mm |
| Depth | 120 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
