Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | DIN-Rail mount |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Atom x6212RE |
| Socket | FCBGA1493 |
| CPU Support Type | Atom |
| Max CPU frequency | 1.2 GHz |
| Number of CPU | 1 |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Registred | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | HDMI |
Ethernet | |
| Controller Type | Marvell 88E1512 10/100/1000 Mbps, Intel i225IT, Intel i210 |
| Total Ethernet | 6 |
| 10/100/1000 Mbit/s | 2 |
| 2,5 Gbit/s | 2 |
| SFP 100/1000 Mbit Ports | 2 |
Interfaces | |
| COM Total | 2 |
| RS-485 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| SATA 3 | 1 |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 1 |
| M.2 Form Factor | 3042 M |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED, 1xHDD LED |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

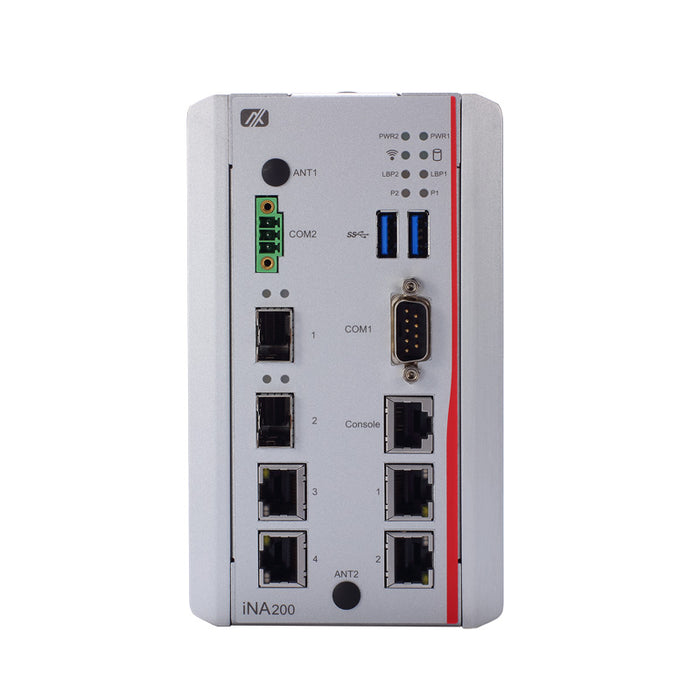

| Connectors | 4xRJ45 Ethernet, RJ45 (Console), 2xSFP, DB9, 2xUSB, 1xCOM (terminal block), DC input (terminal block), HDMI |
System Power Input | |

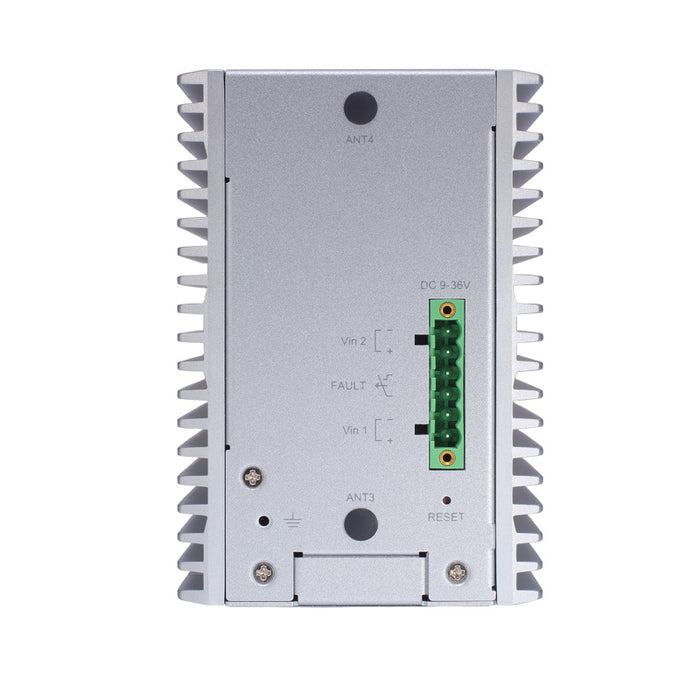

| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Windows 10, Linux OS |
Dimensions and weight | |
| Width | 66 mm |
| Height | 125 mm |
| Depth | 150 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
| Humidity | 5-95% |
Standards and Certifications | |
| Certifications | CE, FCC |
