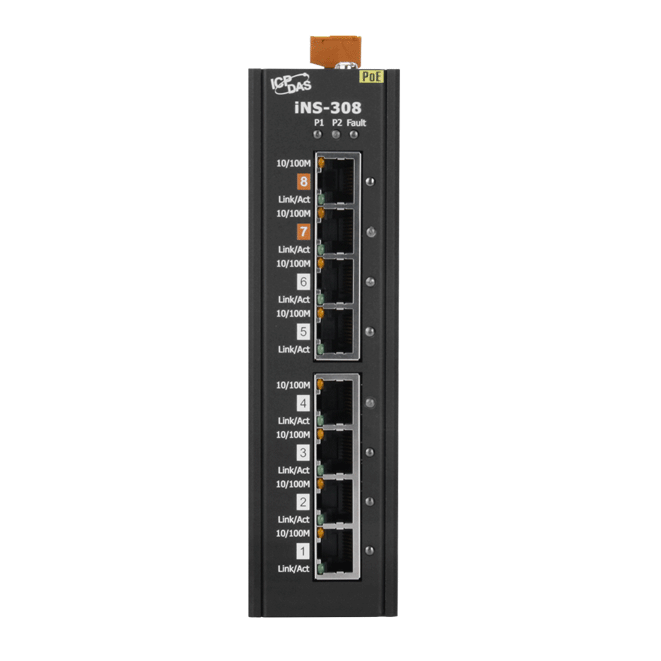

Ethernet | |
| Total Ethernet | 8 |
| 10/100 Mbit/s | 8 |
| Type 10/100 Mbit/s | 8xRJ-45 |
| ethernet_poe_100mbit | 8 |
| ethernet_poe_standard | 802_3af |
| Power Budget | 30 W |
Switch Properties | |
| Managed | No |
| MAC Table Size | 16000 |
| Packet Buffer Size | 4 kBit |
Supported Protocols | |
| Industrial Protocols | Modbus TCP |
| Managment Protocols | SNMP |
| IEEE Standard | ieee_802.3u, ieee_802.3af, ieee_802.3x, ieee_802.3, ieee_802.3at |
Digital Output | |
| Total channels of digital output | 1 |
| Type | Electromagnitic relay |
| Contact rating of relay (Form A) | 1A@30V DC |
LED / Controls | |
| Setup of Operation Mode | Web-interface |

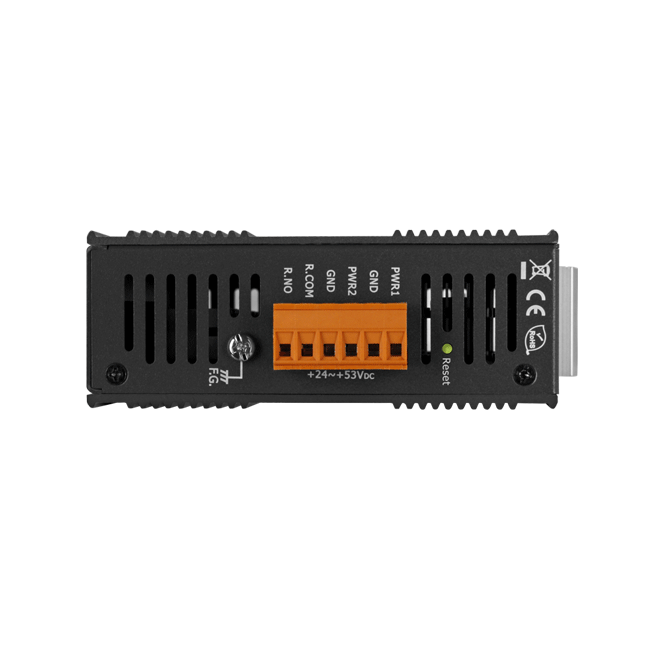

System Power Input | |
| Redundant power input | Yes |
| Power Supply Reserve input Voltage DC | 24...57 V |
Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | DIN-Rail mount, Wall |
Dimensions and weight | |
| Width | 42 mm |
| Depth | 164 mm |
| Height | 120 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
| Humidity | 10-90% |
