Construction |
| Construction Chassis | Plastic Chassis |

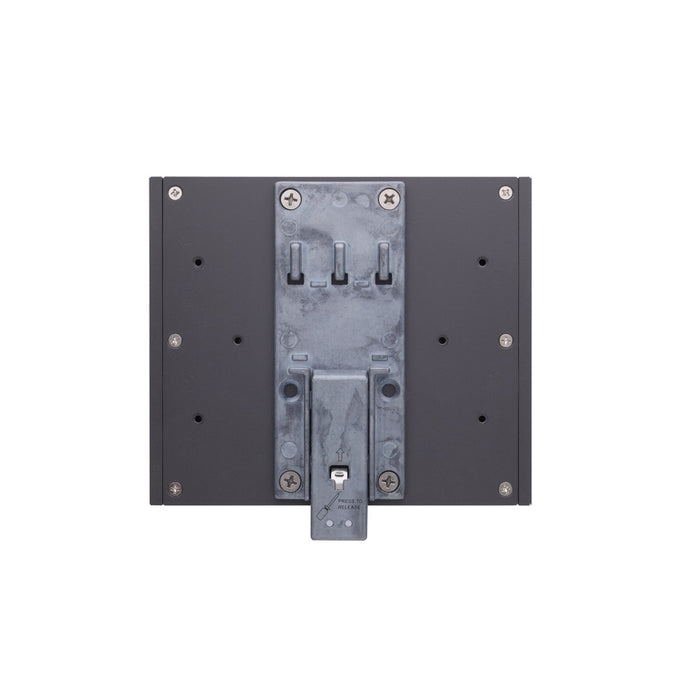

| Mounting Configuration | Wall, DIN-Rail mount |
Ethernet |
| 10/100 Mbit/s | 1 |
Supported Protocols |
| Industrial Protocols | Modbus TCP server |
Digital Input |
| Total channels of digital input | 12 |
| Type | Dry contact, Wet contact |
| Level of Logic "0" | 10~30 V |
| Level of Logic "1" | 0~3 V |
| Isolation of Digital Input | 3000 V |
| Counter | 250Hz, 16 bit |
System Power Input |
| Input Voltage DC | 12...48 V |
Dimensions and weight |
| Width | 144 mm |
| Depth | 30 mm |
| Height | 124 mm |
Operating Conditions |
| Operating Temperature | -40...85 °C |
Standards and Certifications |
| EMI | FCC Part 15, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3 |
| EMS | EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2 |
| Freefall | IEC 60068-2-32 |
| Rolling Stock | EN 50121-4, EN 50155, EN 50121-3-2 |
| Safety | UL 508 |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27 |
