Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 8 " |
| Maximum resolution | 1024x600 Dots |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | ARM Cortex A9 |
| Socket | CPU onboard |
| Max CPU frequency | 1.6 GHz |
Chipset | |
| Chipset | SoC |
Memory | |
| Form-factor | DDR3 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 1 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 2 |
Drive interfaces | |
| MicroSD | 1 |
Installed drive | |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 16 GB |
Extension Slots | |
| SIM Card slots | Yes |
Antenna characteristics | |
| Cellular interfaces | 3G, 4G |
Additional Functions | |
| GPS | GPS |
LED / Controls | |
| Controls | On/Off |
Connectors | |

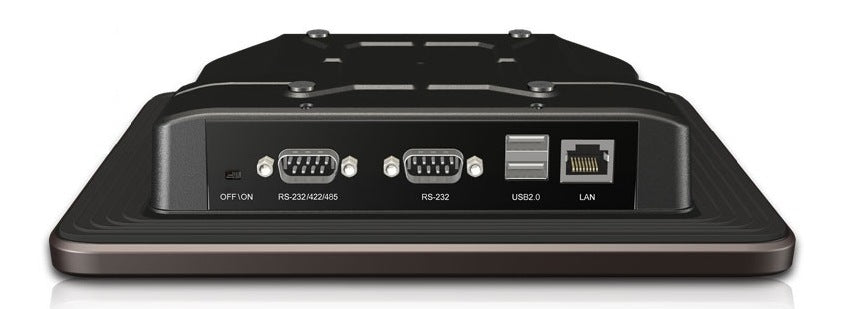

| Connectors | 2xDB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), CAN (terminal block), GPIO (terminal block), Audio In |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Installed | Android |
Dimensions and weight | |
| Width | 218.2 mm |
| Height | 162.7 mm |
| Depth | 46.5 mm |
Operating Conditions | |
| Operating Temperature | -10...70 °C |
| Humidity | 5-85% |
