Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Protection Level of Chassis | IP20 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 8 " |
| Maximum resolution | 800x480 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 600 Cd/m2 |
| Contrast Ratio | 600~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Socket | CPU onboard |
| Max CPU frequency | 1.91 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 4 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB 2.0 | 1 |
| USB v3.x | 1 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 64 GB |
LED / Controls | |
| Controls | Control Buttons |
Connectors | |

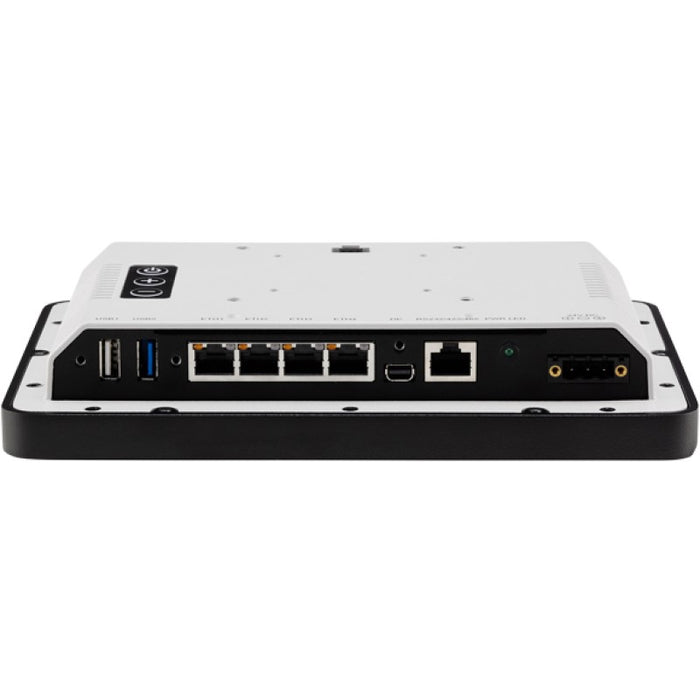

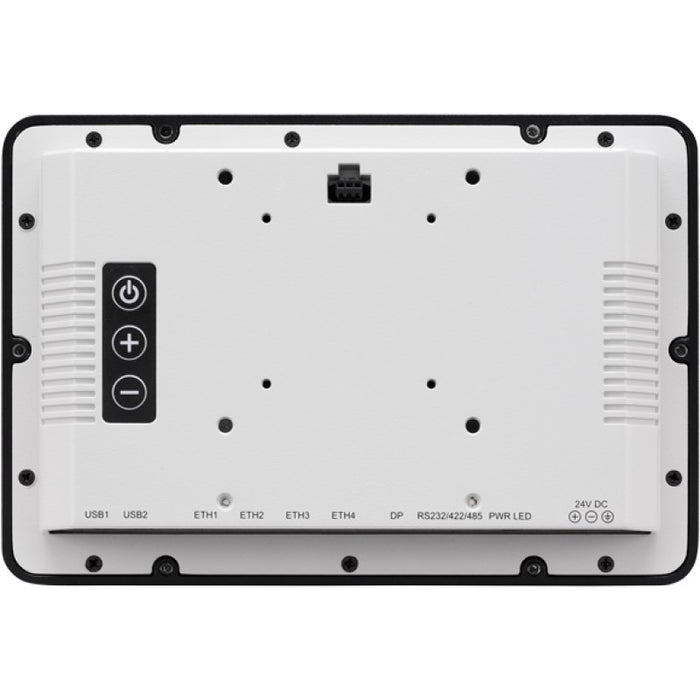

| Connectors | DB9, 4xRJ45 Ethernet, 2xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 218.5 mm |
| Height | 147.5 mm |
| Depth | 39.5 mm |
Operating Conditions | |
| Operating Temperature | -25...60 °C |
| Vibration | 1.15Grms @ random condition. 1~200Hz. 1.5hr/axis (operating/non-operating) |
| Shock | IEC 68 2-27 - 20G @ wall mount. half sine. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
