Construction | |
| Mounting Configuration | Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |

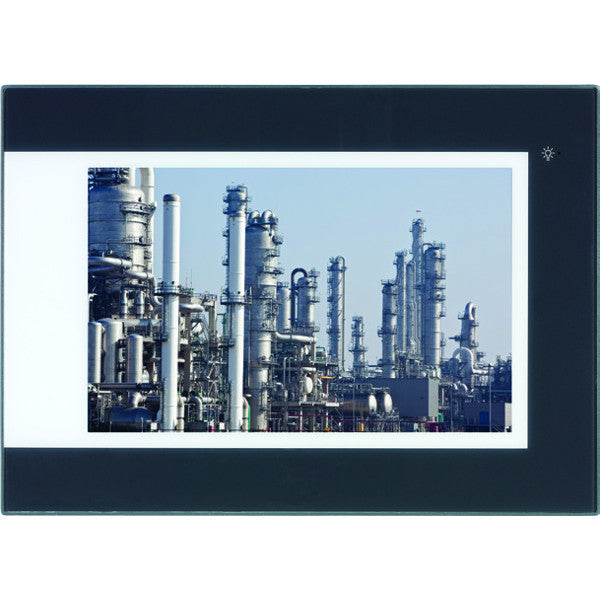

Display | |
| Display Type | LCD TFT |
| Diagonal | 10.1 " |
| Maximum resolution | 1280x800 Dots |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 1300~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 3 |
Drive interfaces | |
| CFast Slots | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |

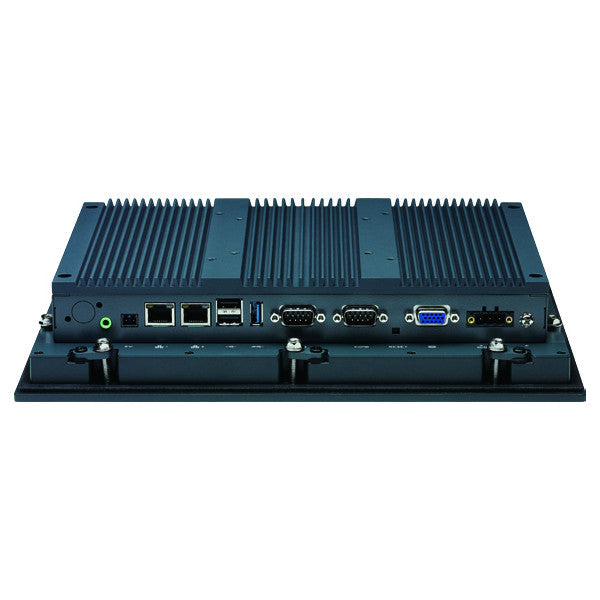

Connectors | |
| Connectors | DB15 VGA, 2xRJ45 Ethernet, Line Out |
System Power Input | |
| Input Voltage DC | 12...30 V |
Software | |
| Operating System Compatibility | Windows 7 |
Dimensions and weight | |
| Width | 308 mm |
| Height | 223 mm |
| Depth | 60.7 mm |
Operating Conditions | |
| Operating Temperature | -10...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| EMS | EN 61000-6-2, EN 61000-6-4 |
