Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 5000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Apollo Lake |
| Processor Installed | Intel Celeron J3455 |
| Max CPU frequency | 2.3 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| M.2 | 1 |
Storage Cage | |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

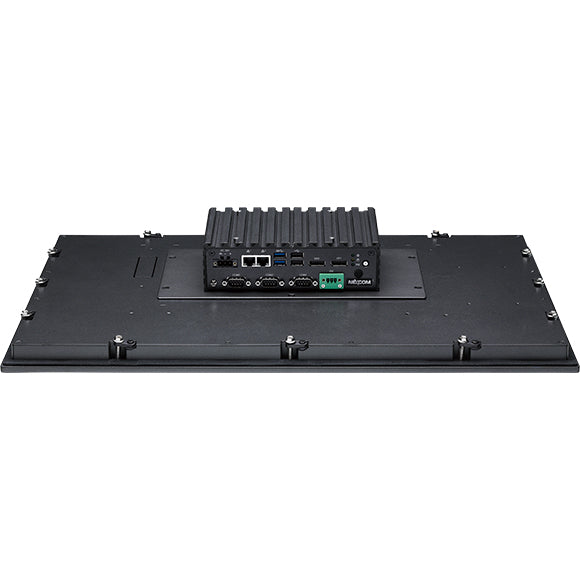

| Connectors | 3xDB9, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 562.4 mm |
| Height | 382.4 mm |
| Depth | 81.35 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Vibration | - IEC 68 2-64 (w/ HDD) - 1Grms @ sine. 5~500Hz. 1hr/axis (HDD operating) - 2.2Grms @ random condition. 5~500Hz. 0.5hr/axis (non-operating) |
| Shock | - IEC 68 2-27 - HDD: 20G@wall mount. half sine. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
