Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Panel, Wall |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 23.8 " |
| Maximum resolution | 1920x1080 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Comet Lake |
| Socket | LGA1200 |
| CPU Support Type | Core i9, Core i7, Core i5, Core i3, Celeron, Pentium |
Chipset | |
| Chipset | Intel H420E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel UHD Graphics |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| M.2 | 1 |
| mSATA | 1 |
Storage Cage | |
| 2.5" Cage External | 1 |
Installed drive | |
| Drive Type | SSD |
Extension Slots | |
| Total | 4 |
| PCI Express x4 | 1 |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

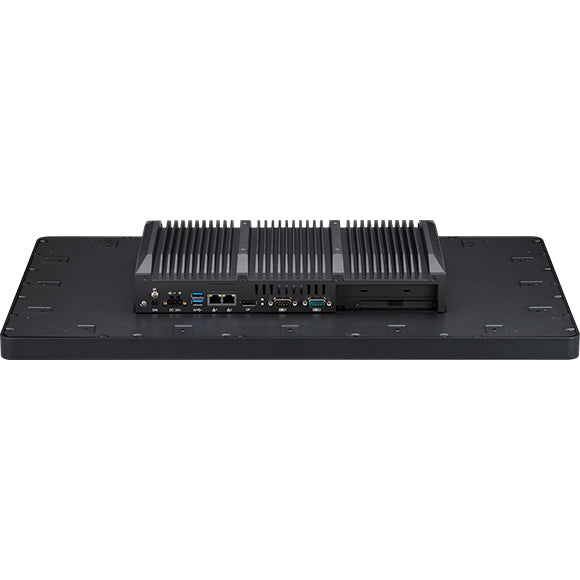

| Connectors | 2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xDP |
System Power Input | |
| Input Voltage DC Min | 24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 590 mm |
| Height | 366.6 mm |
| Depth | 74.2 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Humidity | 10-90% |
| Vibration | Random: 2Grms@5~500 Hz. IEC60068-2-64; Sinusoidal: 2Grms@5~500 Hz. IEC60068-2-6 |
| Shock | HDD: 20G. half sine. 11ms. IEC60068-2-27; M.2: 50G. half sine. 11ms. IEC60068-2-27 |
Standards and Certifications | |
| Certifications | IEC 61000-6-2, IEC 61000-6-4, CE/FCC |
| Vibration And Shock | IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64 |
