Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall, Wall VESA 100, Wall VESA 75 |
| Protection Level of Chassis | IP65, NEMA4 |

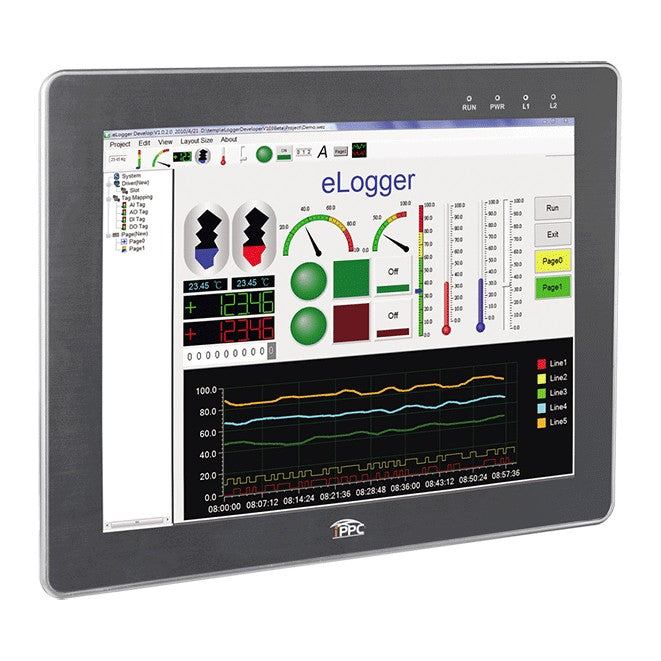

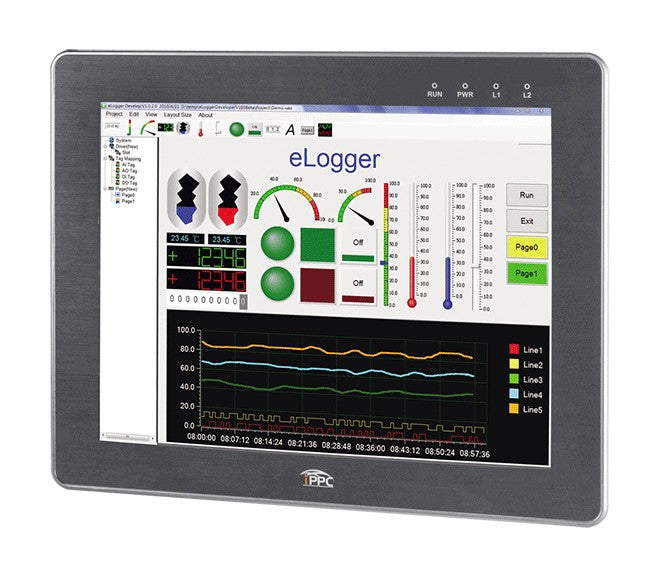

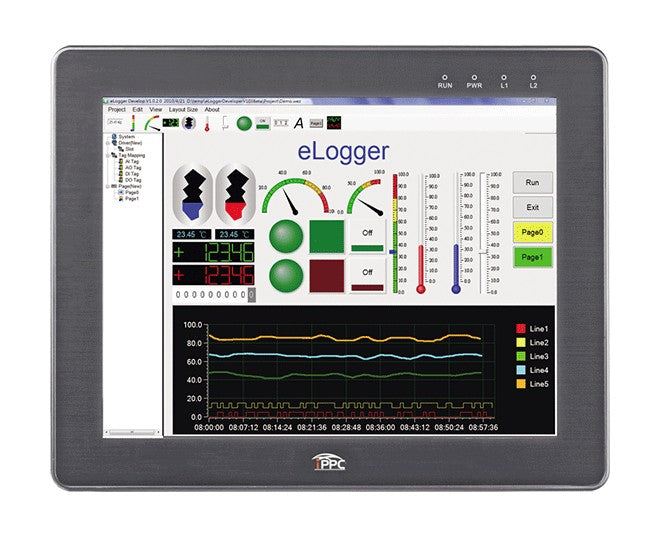

Display | |
| Display Type | LCD TFT |
| Diagonal | 15 " |
| Maximum resolution | 1024x768 Dots |
CPU | |
| Processor Installed | Intel Atom E3845 |
| Max CPU frequency | 1.91 GHz |
Memory | |
| Default on Board Memory | 2 GB |
Installed drive | |
| Flash Memory Capacity | 32 MB |
| EEPROM Memory Capacity | 16 kB |
| MRAM Memory Capacity | 128 kB |
| 1st Storage Capacity | 8 GB |
Drive interfaces | |
| CompactFlash Slots | 1 |

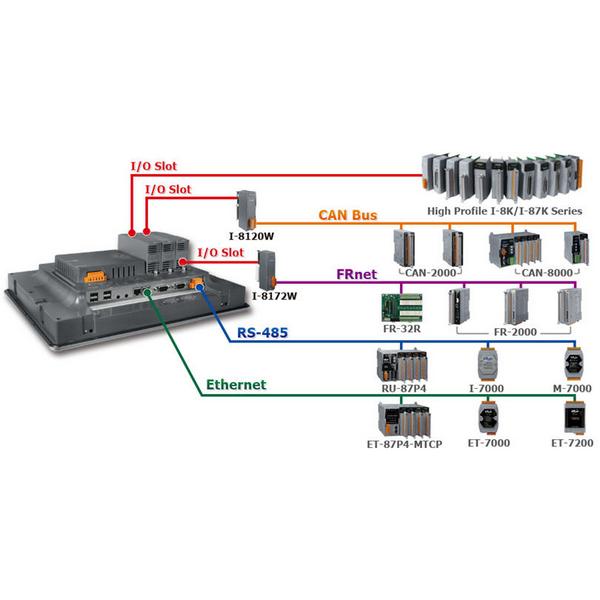

Expansion Module | |
| Quantity of Slots | 3 |
| Supported Module | I-8K series, I-87K series |
Software | |
| Operating System Installed | Windows Embedded Standard 7 |
Ethernet | |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 1 |
| RS-485 | 1 |
| RS-232/485 | 1 |
| USB Total | 3 |
Additional Functions | |
| Watchdog timer type | Hardware |

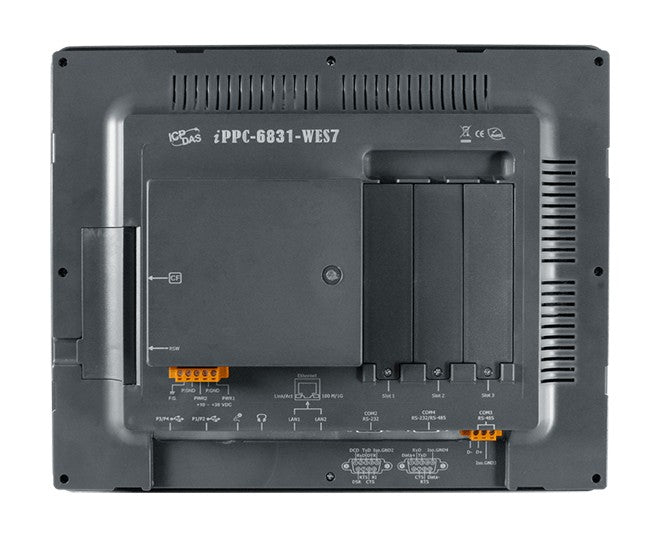

Connectors | |
| Connectors | 3xDB9, 2xRJ45 Ethernet, 3xUSB, Line Out, DC Input, CompactFlash |
Dimensions and weight | |
| Width | 381 mm |
| Depth | 87 mm |
| Height | 305 mm |
System Power Input | |
| Input Voltage DC | 10...30 V |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
