Construction |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP66 |
| Material Front Side (Panel) | Aluminum |
Display |
| Display Type | LCD TFT |
| Diagonal | 15.6 " |
| Maximum resolution | 1366x768 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 300 Cd/m2 |
| Contrast Ratio | 500~1 |
| Input Interface | DisplayPort, VGA, DVI-D |
Touch Screen |
| Touch Screen Type | Capacitive |
| Interface | USB |
LED / Controls |
| LED | Power LED |
| Controls | On/Off |

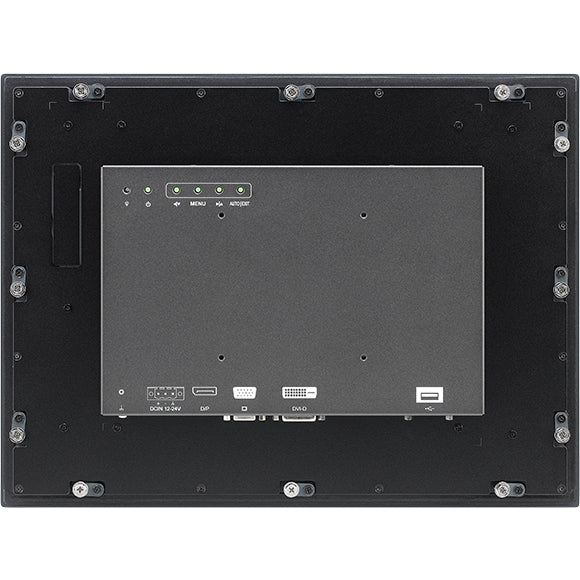

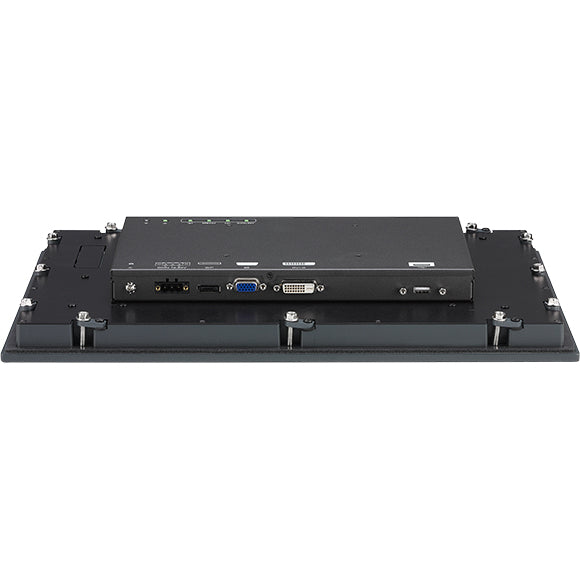

Connectors |
| Connectors | DVI-D, DB15 VGA, 1xUSB, Display Port, DC input (terminal block) |
System Power Input |
| Input Voltage DC | 12...24 V |
Power Supply |
| Supported Types of Power Supply | External power adapter AC/DC |
Operating Conditions |
| Operating Temperature | -10...60 °C |
| Vibration | IEC 68 2-64. 2Grms @ sine. 5~500Hz. 1hr/axis (operating). 2.2Grms @ random condition. 5~500Hz. 0.5hr/axis (non-operating) |
| Shock | IEC 68 2-27. HDD: 20G@wall mount. half sine. 11ms |
Dimensions and weight |
| Width | 417.4 mm |
| Height | 312.4 mm |
| Depth | 51.8 mm |
Standards and Certifications |
| Certifications | CE, FCC Class B |
