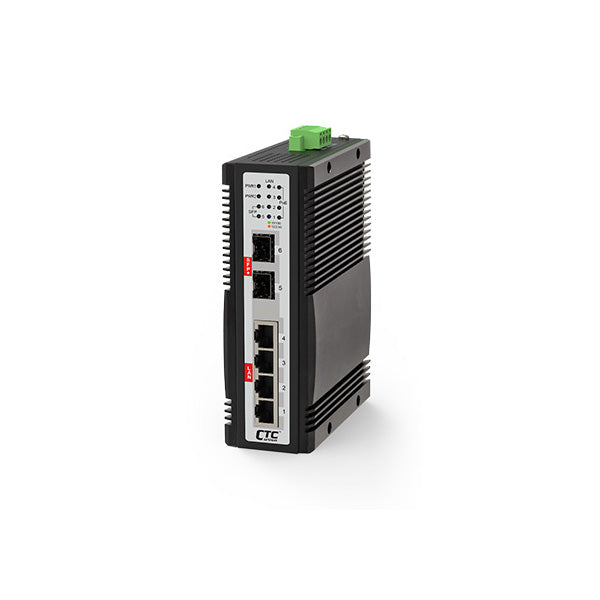

IQS-402XSM-4PH

Ціна за запитом
Industrial Managed Ethernet Switch with 4x2.5G N-Base-TX, 2x10G Base-X SFP+ with 4x PoE 120W, Compact Size, redundant dual power input 48VDC, -10..+60C Operating Temperature

Specification

Ethernet

10/100/1000 Mbit/s4

Switch Properties

MAC Table Size8000
Jumbo Frame Size9.6 kB

Supported Protocols

IEEE StandardIEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bz for 2.5GBaseX

Construction

Protection Level of ChassisIP30

Dimensions and weight

Width127.6 mm
Depth160 mm
Height48.6 mm

Standards and Certifications

CertificationsCE, FCC Class A
EMSEN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
FreefallIEC 60068-2-31
Vibration And ShockIEC 60068-2-6, IEC 60068-2-27
