IS-DG102P-1

Name: IS-DG102P-1
Brand: ISON
SKU: 56404700
Availability: InStock

ISON

Ціна за запитом

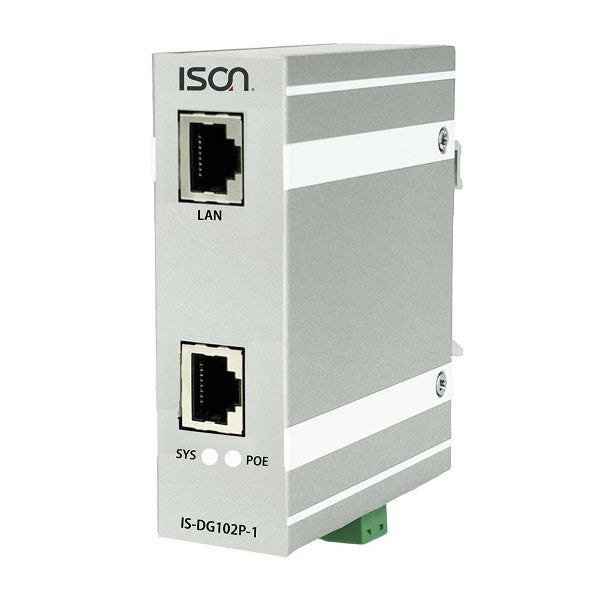

Industrial 2-port Power-over-Ethernet Injector, 1x 1000Base-TX port, 1x 1000 PoE Slot, IEEE 802.3af/at 15.4/30 Watt output, mode A

Специфікація

Specification

Ethernet
Total Ethernet	2
10/100/1000 Mbit/s	2
ethernet_poe_1000mbit	1
ethernet_poe_standard	802_3at
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet
System Power Input
Input Voltage DC	46...57 V
Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	91 mm
Depth	71.3 mm
Height	29 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE, FCC Class A, FCC
EMS	IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27
