IS-DG102P-1-60

Name: IS-DG102P-1-60
Brand: ISON
SKU: 56597800
Availability: InStock

ISON

Ціна за запитом

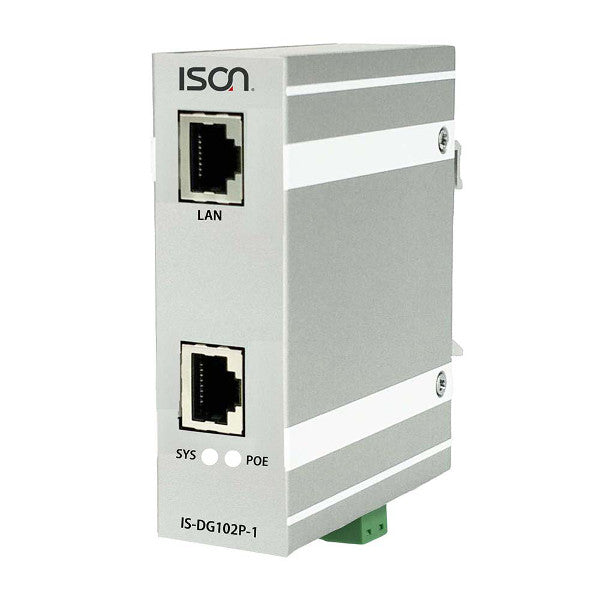

Industrial 2-port PoE Injector, 1 10/100/1000BaseT(X) port, 1 10/100/1000BaseT(X) PoE port, Ultra PoE, 60 Watt output, mode A

Специфікація

Specification

Ethernet
Total Ethernet	2
10/100/1000 Mbit/s	2
ethernet_poe_1000mbit	1
ethernet_poe_standard	802_3at
Supported Protocols
Managment Protocols	TCP, UDP
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC	46...57 V
Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	32 mm
Depth	81.5 mm
Height	103.5 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE, FCC Class A, FCC
EMS	IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
