IS-DG308-A

Name: IS-DG308-A
Brand: ISON
SKU: 56591500
Availability: InStock

ISON

Ціна за запитом

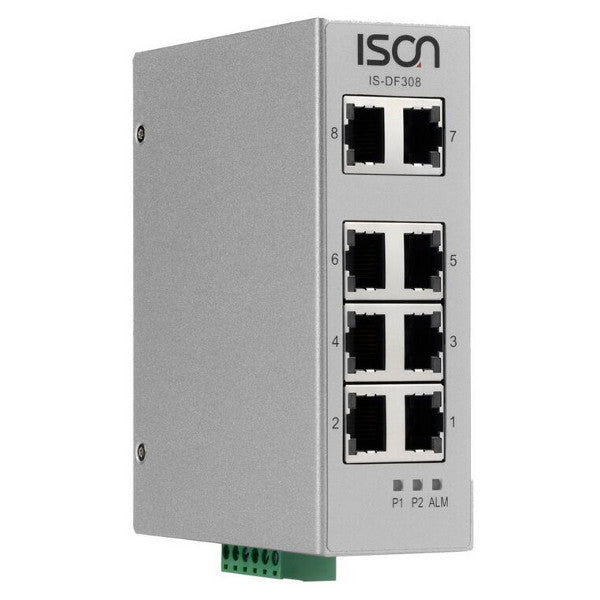

Industrial DIN-Rail Unmanaged Layer 2 8-port Switch with 8x 1000 Base-TX ports, -40...+75C operating temperature, 100/240V AC In

Специфікація

Specification

Ethernet
Total Ethernet	8
10/100/1000 Mbit/s	8
Supported Protocols
Managment Protocols	TCP, UDP
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
System Power Input
Input Voltage AC	100...240 V
Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Desktop, Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	140 mm
Depth	96 mm
Height	70 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE, FCC
EMS	IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27
