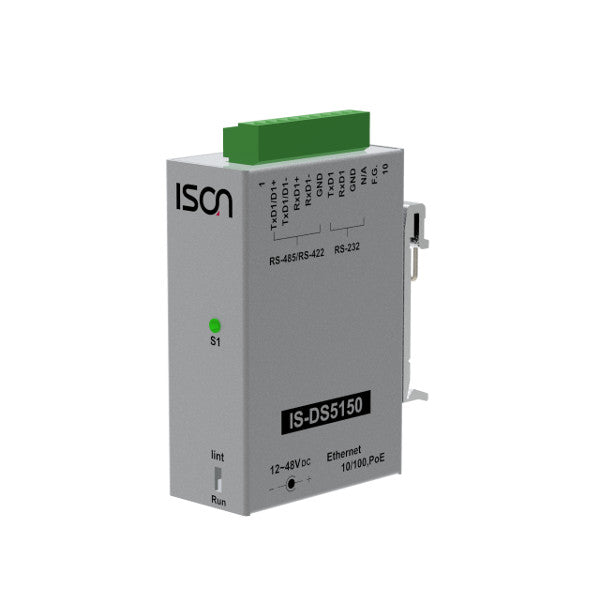

IS-DS5150

Name: IS-DS5150
Brand: ISON
SKU: 56592700
Availability: InStock

ISON

Ціна за запитом

Industrial Tiny Serial-to-Ethernet Device Server, 10/100 Base-TX with PoE, 3xCOM, 12-48V DC-In, -25...+70C Wide Temperature

Специфікація

Specification

Ethernet
Total Ethernet	1
10/100 Mbit/s	1
PoE 10/100 Mbit/s	1
Interfaces
COM Total	3
RS-232	1
RS-422	1
RS-485	1
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT
LED / Controls
LED	Power LED, 10/100/1000M LED
System Power Input
Input Voltage DC	12...48 V
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	77.5 mm
Depth	52 mm
Height	26 mm
Standards and Certifications
Certifications	CE, FCC Class A, FCC
EMS	IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27
