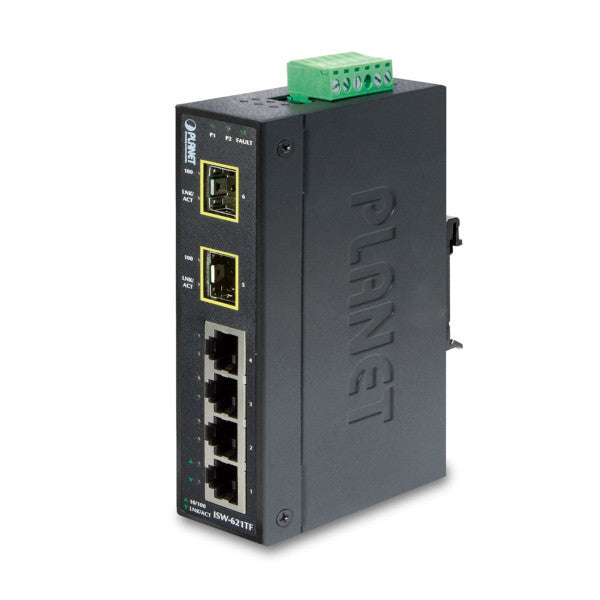

ISW-621TF

Name: ISW-621TF
Brand: Planet
SKU: 56806100
Availability: InStock

Planet

Ціна за запитом

Industrial DIN-Rail Fast Ethernet Unmanaged Ethernet Switch, 4x100 Base(TX), 2xBase(FX), Redundant 12-48VDC, -40..+75C Operating Temperature

Специфікація

Specification

Ethernet
10/100 Mbit/s	4
SFP Fast Ethernet 100 Mbit/s	2
Switch Properties
Managed	No
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input	Yes
Input Voltage DC	12...48 V
Power Supply Reserve input Voltage DC	12...48 V
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Desktop, Wall, DIN-Rail mount
Protection Level of Chassis	IP30
Dimensions and weight
Width	32 mm
Depth	97 mm
Height	135 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE
EMI	FCC Part 15 Subpart B Class A
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27
