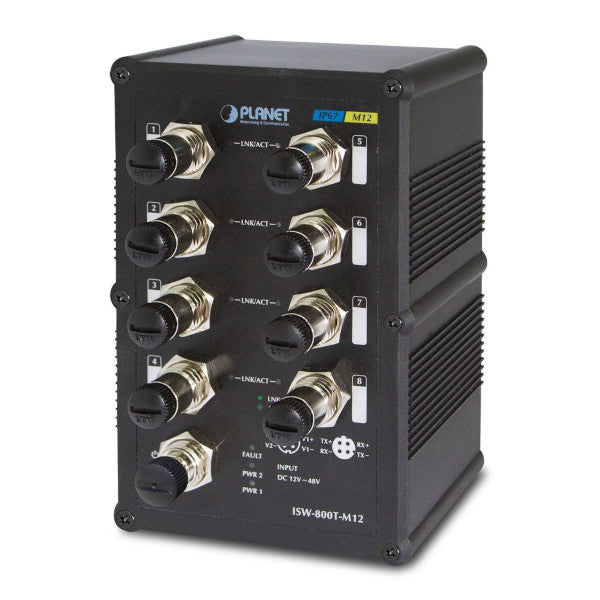

ISW-800T-M12

Name: ISW-800T-M12
Brand: Planet
SKU: 56820000
Availability: InStock

Planet

Ціна за запитом

Industrial IP67 DIN-Rail Unmanaged Switch with 8x100 Mbps ports, redundant 12-48VDC Power Input, -40...+75C operating temperature

Специфікація

Specification

Ethernet
10/100 Mbit/s	8
Supported Protocols
IEEE Standard	IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC	12...48 V
Construction
Construction Chassis	Aluminium Chassis
Mounting Configuration	Wall, DIN-Rail mount
Protection Level of Chassis	IP67
Dimensions and weight
Width	53 mm
Depth	103 mm
Height	163 mm
Operating Conditions
Operating Temperature	-40...75 °C
Standards and Certifications
Certifications	CE
EMI	FCC Part 15 Subpart B Class A
Freefall	IEC 60068-2-32
Vibration And Shock	IEC 60068-2-6, IEC 60068-2-27
