Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Built-in, Panel |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.4 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Atom x7-E3950 |
| Max CPU frequency | 2 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Ethernet | |
| Controller Type | Intel i210 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-422/485 | 2 |
| USB Total | 1 |
| USB 2.0 | 1 |
Digital Input-Output | |
| Channels of DIO | 5 |
Drive interfaces | |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| 1st Storage Capacity | 64 GB |
LED / Controls | |
| Controls | Control Buttons |
Connectors | |

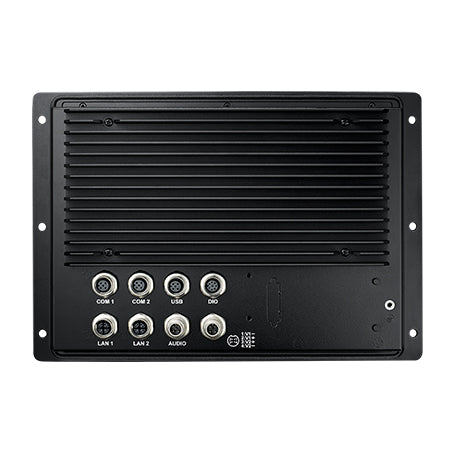

| Connectors | M12 USB, 5-pin M12 A-code Female, 8-pin M12 A-code Male, 8-pin M12 X-code Male |
Software | |
| Operating System Compatibility | Windows 8, Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 310 mm |
| Height | 214 mm |
| Depth | 70 mm |
Operating Conditions | |
| Operating Temperature | -25...70 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| EMS | EN 50121 |
| Rolling Stock | EN 50155, IEC 61373, EN 45545 |
| Safety | UL |
