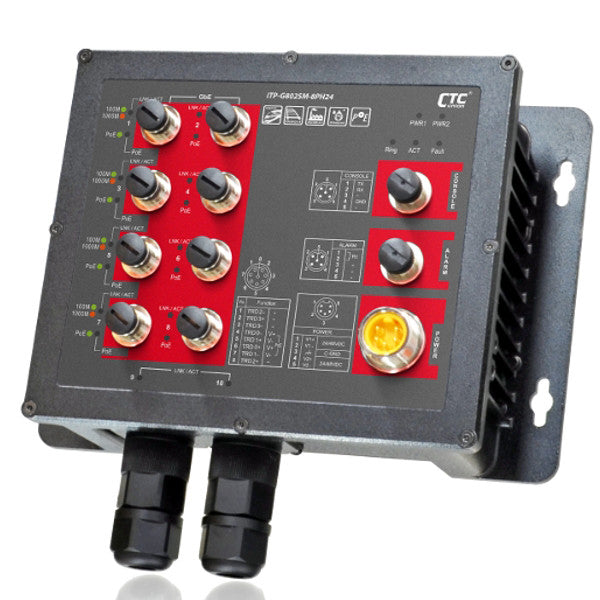

ITP-G802SM-8PH24

Ціна за запитом
Managed Ethernet PoE Switch with 8x 00/1000 Base-T PoE Ports, 2x 1000 Base-X SFP Slots, EN50155 Certification, Redundant Dual 24/48VDC Input Power, IP67, -10..+60C Operating Temperature

Specification

Ethernet

Total Ethernet10
10/100/1000 Mbit/s8
Type 10/100/1000 Mbit/sM12
SFP 100/1000 Mbit Ports2
PoE+ 10/100/1000 Mbit/s8

Switch Properties

ManagedYes

Supported Protocols

Managment ProtocolsIEEE 1588 PTP V2 (software based), SNMPv1/v2c/v3, HTTP, RMON, Syslog, Telnet, TFTP, DHCP, DNS
Security ProtocolsIEEE 802.1X Network Access Control, HTTPS, SSH, SSL
IEEE StandardIEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

LED / Controls

Setup of Operation ModeConsole Port, Web-interface

System Power Input

Redundant power inputYes
Input Voltage DC20...57 V
Power Supply Reserve input Voltage DC20...57 V

Construction

Construction ChassisMetal Chassis
Mounting ConfigurationWall, DIN-Rail mount
Protection Level of ChassisIP67

Dimensions and weight

Width240 mm
Depth70 mm
Height168 mm

Operating Conditions

Operating Temperature-10...60 °C

Standards and Certifications

CertificationsCE
EMIEN 55022 Class A, FCC Part 15 Subpart B Class A
EMSIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling StockEN 50121-4, EN 50155
SafetyUL 60950-1
FreefallIEC 60068-2-32
Vibration And ShockIEC 61373
