System Architecture | |
| Form Factor | Mini-ITX |
Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel N97 |
| Socket | CPU onboard |
| Max CPU frequency | 3.6 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xDDR4 SODIMM 260-pin |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel UHD Graphics |
| Interfaces | 2xHDMI, eDP, LVDS |
Ethernet | |
| Controller Type | Realtek RTL8111H |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-422/485 | 4 |
| USB Total | 10 |
| USB 2.0 | 6 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Realtek ALC269 |
Drive interfaces | |
| SATA 3 | 1 |
| M.2 | 1 |
Extension Slots | |
| Total | 2 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 2230 E |
Connectors | |

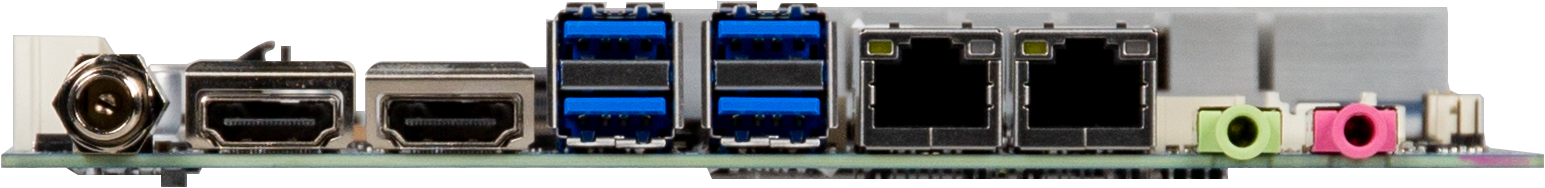

| Connectors | 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 10-90% |
