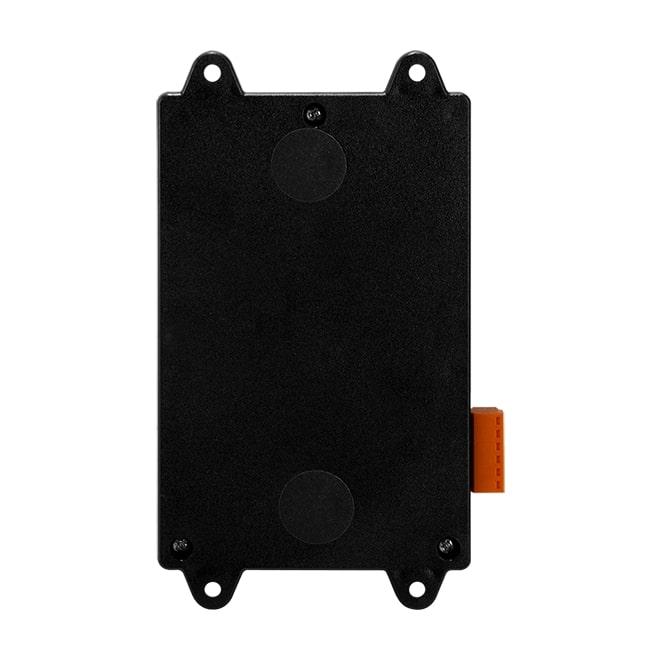

iWSN-121A-240-ME

Name: iWSN-121A-240-ME
Brand: ICP DAS
SKU: 09103200
Availability: InStock

ICP DAS

Ціна за запитом

iWSN Current Sensing Module with 2-ch CT Input, 1-ch Thermistor Input and 1-ch DI (RoHS) (Included 200A CT x2)

Специфікація

Specification

AC Power Measurement
Frequency	50/60Hz
Input Voltage	10...500V AC
Input Current	200А
CT Type	Split-core CT
Power Parameter Measurement	True RMS current (Irms)
Sensors
Measuring Range	0...+80 °С
Accuracy (+/-)	2 °C
Digital Output
Total channels of digital output	1
Type	Electromagnitic relay
RF Interface
Frequency	433 MHz
Operating Conditions
Operating Temperature	0...45 °C
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, Magnetic mount
Dimensions and weight
Width	85 mm
Depth	25 mm
Height	152 mm
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4
