iWSN-1310-240-ME

Name: iWSN-1310-240-ME
Brand: ICP DAS
SKU: 09103500
Availability: InStock

ICP DAS

Ціна за запитом

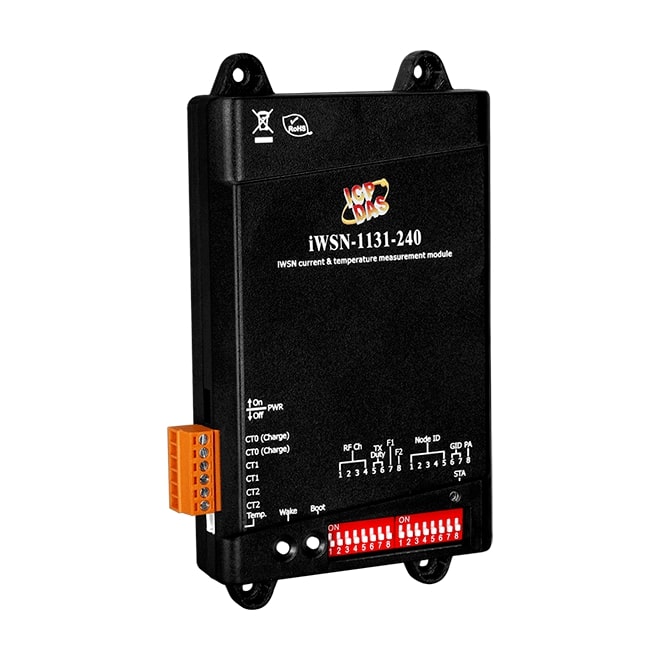

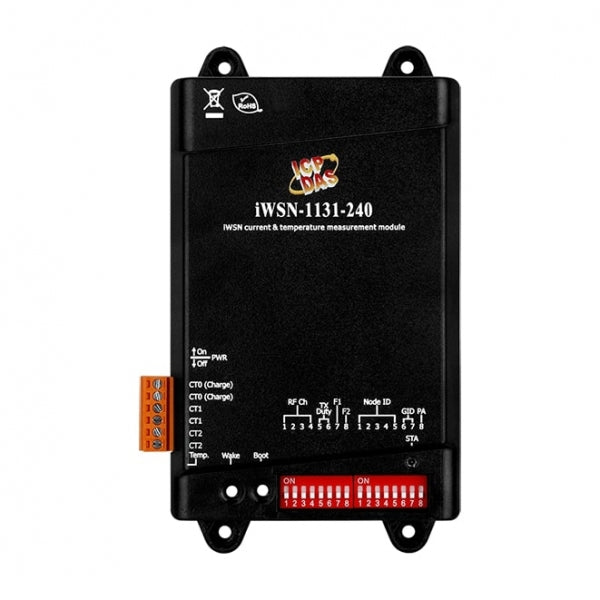

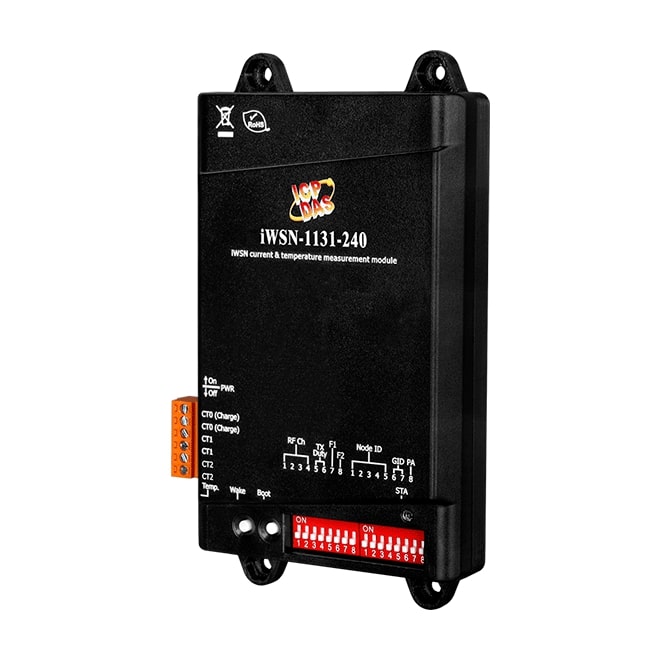

iWSN Current Sensing Module with 3-ch CT Input and 1-ch Thermistor Input (RoHS) (Included 200A CT x3)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, Magnetic mount
RF Interface
Frequency	433 MHz
AC Power Measurement
Frequency	50/60Hz
Input Voltage	10...500V AC
Input Current	200А
CT Type	Split-core CT
Power Parameter Measurement	True RMS current (Irms)
Sensors
Measuring Range	0...+80 °С
Accuracy (+/-)	2 °C
Operating Conditions
Operating Temperature	0...45 °C
Dimensions and weight
Width	85 mm
Depth	25 mm
Height	152 mm
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4
