System Architecture | |
| Form Factor | Mini-ITX |
Construction | |
| Type | Fan |
CPU | |
| CPU Support Type | Xeon |
Chipset | |
| Chipset | Intel CM236 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | LVDS, 3xHDMI |
Ethernet | |
| Controller Type | Intel i211, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC662 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| mSATA | 1 |
Extension Slots | |
| Total | 4 |
| PCI Express x16 | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

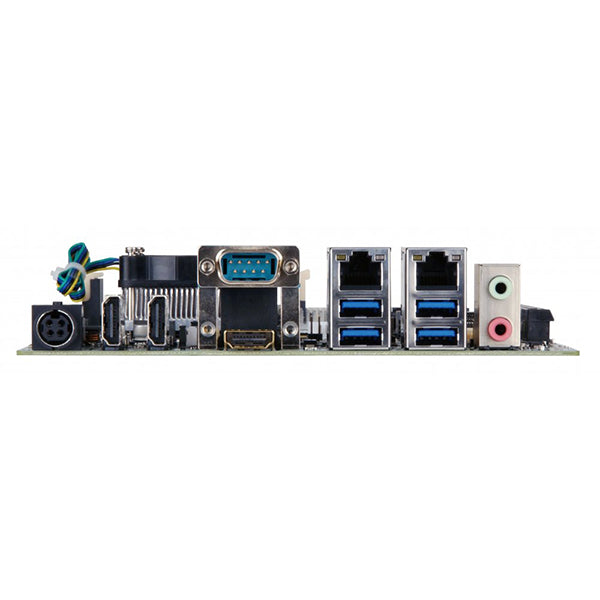

| Connectors | DB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 4-pin DC input, 3xHDMI |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
