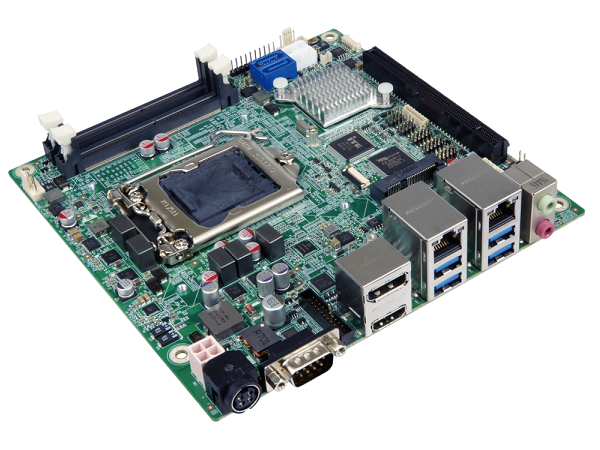

System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
| Socket | LGA1151 |
| Number of CPU | 1 |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in Chipset |
| Interfaces | DisplayPort, HDMI, iDP |
Ethernet | |
| Controller Type | Intel i211, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 2 |
Audio | |
| Audio Controller | Realtek ALC662 |
Extension Slots | |
| Total | 3 |
| PCI Express x16 | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xCOM, 2xSATA 3, 4xUSB 2.0, iDP, 6-pin KB/MS |

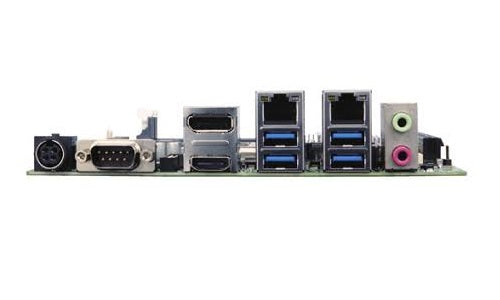

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, 4-pin DC input, DB9 Male |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
