System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Comet Lake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium, Core i9 |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel H420E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 64 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI |
Ethernet | |
| Controller Type | Intel i225LM, Intel i225V |
| Total Ethernet | 3 |
| 10/100/1000 Mbit/s | 3 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 3 |
| RS-422 | 1 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC888 HD |
Extension Slots | |
| Total | 3 |
| SIM Card slots | Yes |
| PCI Express x16 | 1 |
| M.2 | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 10-pin RS-232, 2x4-pin USB 2.0, 8-pin GPIO, 8-pin ATX |

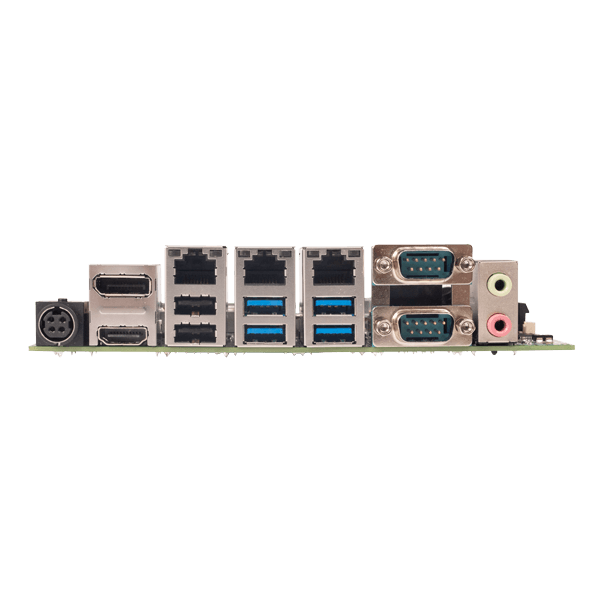

| Connectors | 2xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
