System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Tiger Lake |
| Processor Installed | Intel Core i3-1115G4E |
| Max CPU frequency | 3.9 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 64 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI |
Ethernet | |
| Controller Type | Intel i225LM, Intel i225V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 6 |
| RS-422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 2 |
| PCI Express x8 | 1 |
| M.2 | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xSATA 3, 4-pin SMBus, 4-pin I2C, 1x4-pin RS-422/485, 5x10-pin RS-232, 2x4-pin USB 2.0, 4-pin ATX, 10-pin Audio |

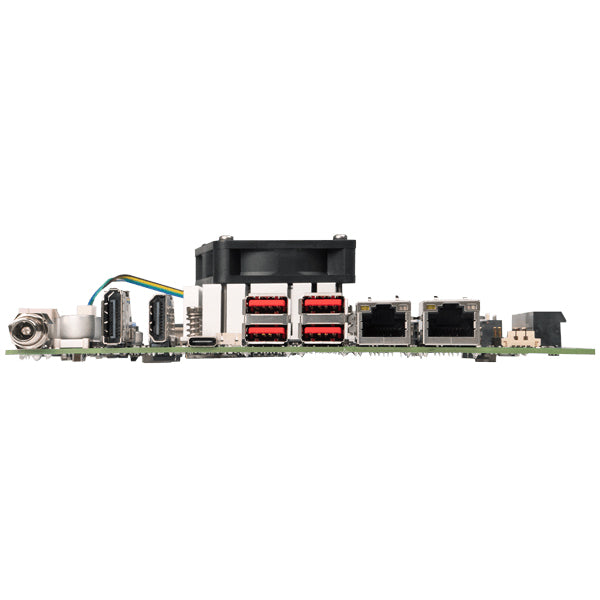

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
