LEAD-PD-2360

Name: LEAD-PD-2360
Brand: Portwell
SKU: 08784500
Availability: InStock

Portwell

Ціна за запитом

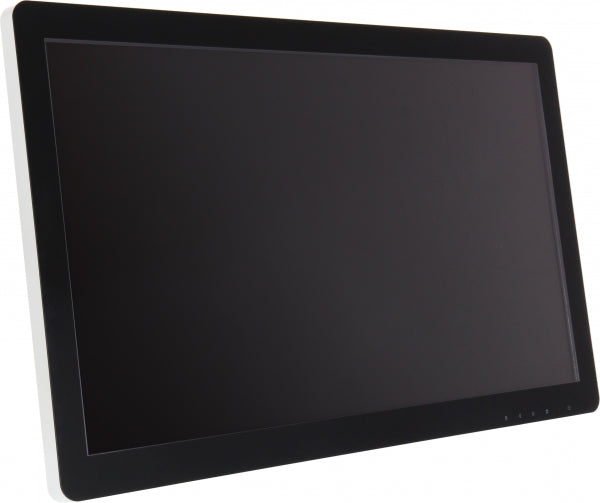

Dispaly 23.6" P-CAP Touch Monitor 1920x1080 TFT LCD, 2xHDMI, VGA, USB 2.0 (Upstream), USB 2.0 (Downstream), Line In, Line Out, 20V DC

Специфікація

Specification

Construction
Construction Chassis	Metal Chassis with Aluminium Heatsink
Mounting Configuration	Desktop, Wall, Wall VESA 75
Protection Level of Front Side (Panel)	IP65
Display
Display Type	LCD TFT
Diagonal	23.6 "
Maximum resolution	1920x1080 Dots
Brightness	250 Cd/m2
Contrast Ratio	1000~1
Touch Screen
Touch Screen Type	Capacitive
Interface	USB
Connectors

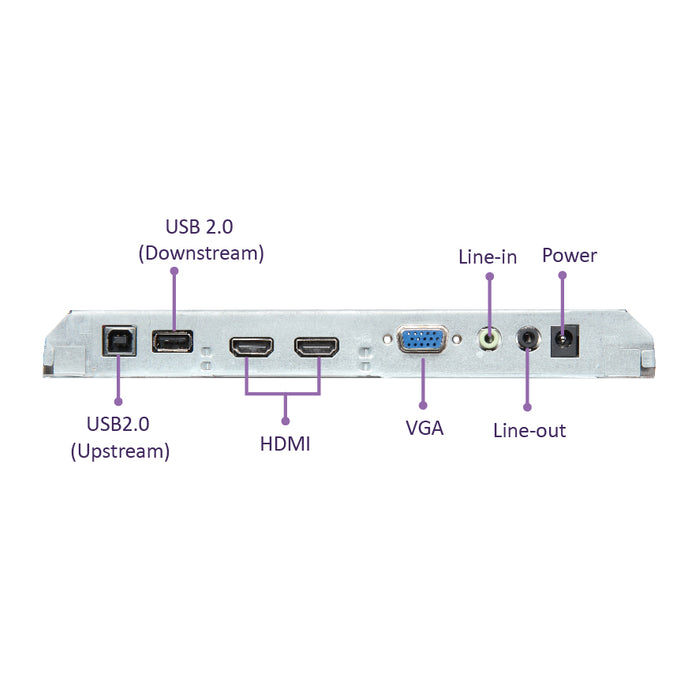

Connectors	DB15 VGA, 2xHDMI, DC Input, USB type A, USB type B
System Power Input
Input Voltage DC	20...20 V
Power Supply
Type of Power Supply	External power adapter AC/DC
Output Power	45 W
Operating Conditions
Operating Temperature	0...40 °C
Dimensions and weight
Width	561.9 mm
Height	353.4 mm
Depth	43 mm
Standards and Certifications
Certifications	CE, FCC Class B
