Construction | |
| Construction Chassis | Plastic Chassis with Aluminum Heatsink |
| Mounting Configuration | Built-in, Desktop, Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP66 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 23.6 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | ARM Cortex A7 |
| Socket | CPU onboard |
Memory | |
| Form-factor | DDR3L |
| Socket Type | Soldered |
| Default on Board Memory | 1 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| USB Total | 2 |
LED / Controls | |
| LED | 1xOn/Off LED |

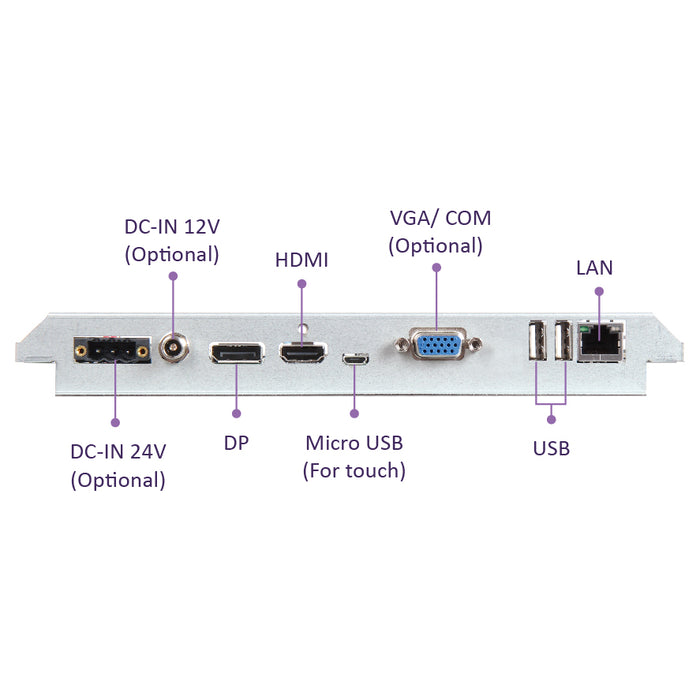

Connectors | |
| Connectors | DB25, HDMI, Display Port |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Output Power | 40 W |
Software | |
| Operating System Compatibility | Android |
Dimensions and weight | |
| Width | 569.1 mm |
| Height | 353.4 mm |
| Depth | 43 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
