Construction | |
| Construction Chassis | Metal Chassis with Aluminium Heatsink |
| Mounting Configuration | Desktop, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

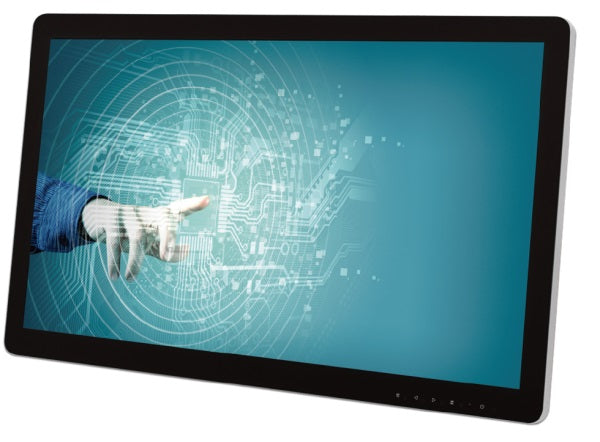

Display | |
| Display Type | LCD TFT |
| Diagonal | 21.5 " |
| Maximum resolution | 1920x1080 Dots |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 1000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Atom x5-E3930 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 8 GB |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel WGI210AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Realtek ALC892 |
Drive interfaces | |
| mSATA | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | mSATA |
| 1st Storage Capacity | 128 GB |
LED / Controls | |
| Controls | On/Off |

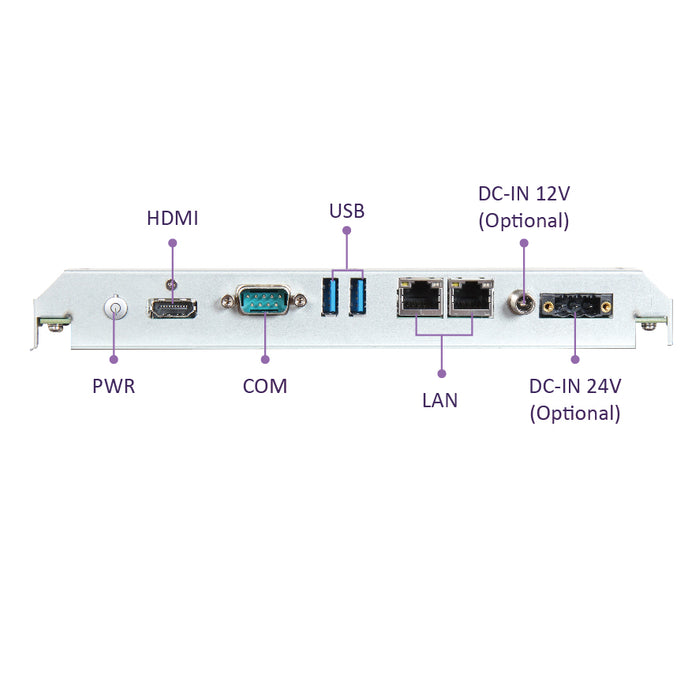

Connectors | |
| Connectors | DB9, HDMI, RJ45 Ethernet, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 65 W |
Software | |
| Operating System Compatibility | Android, Ubuntu, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 521.9 mm |
| Height | 321.4 mm |
| Depth | 43 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
