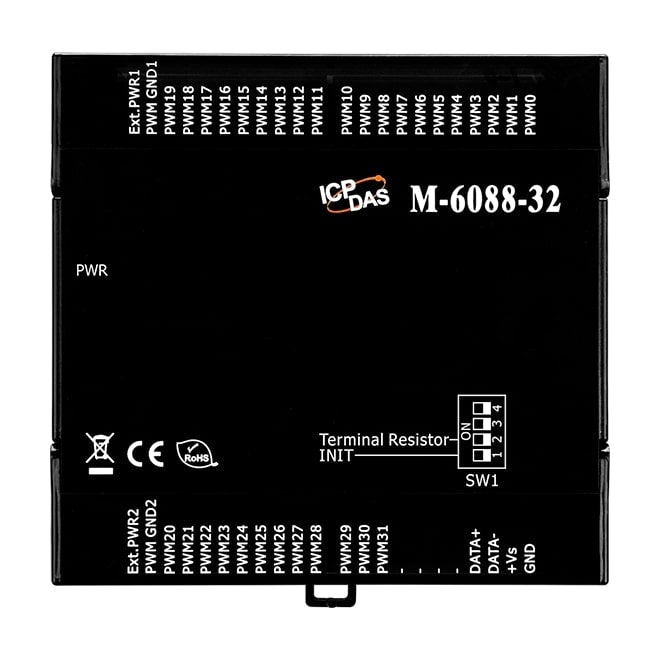

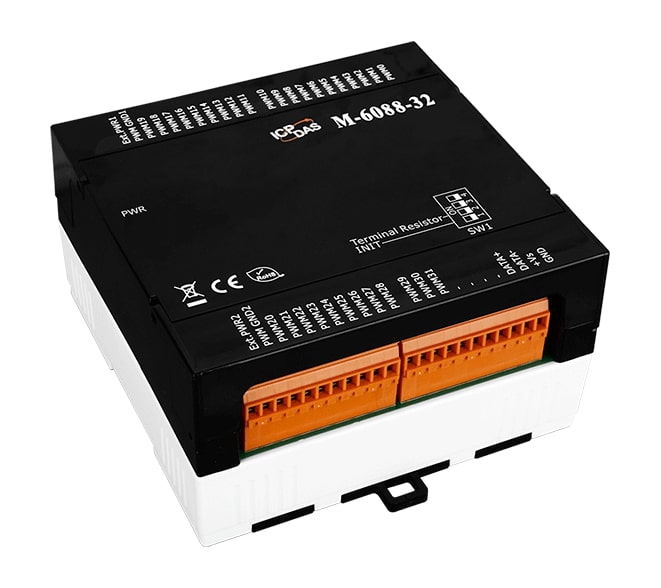

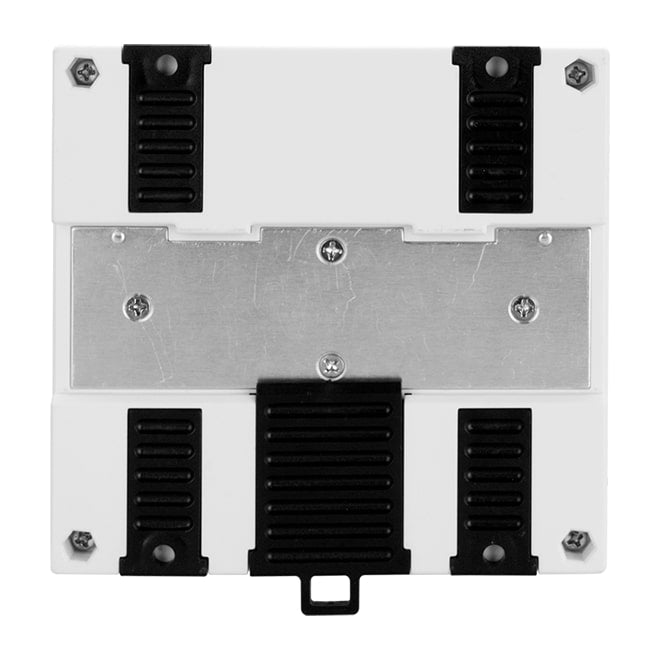

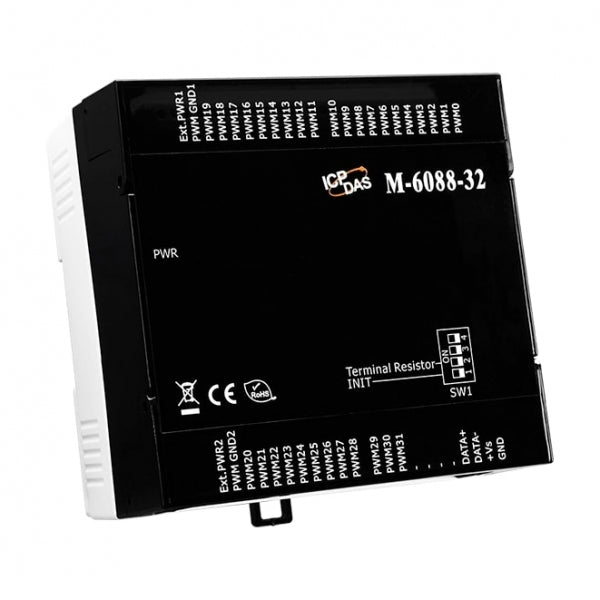

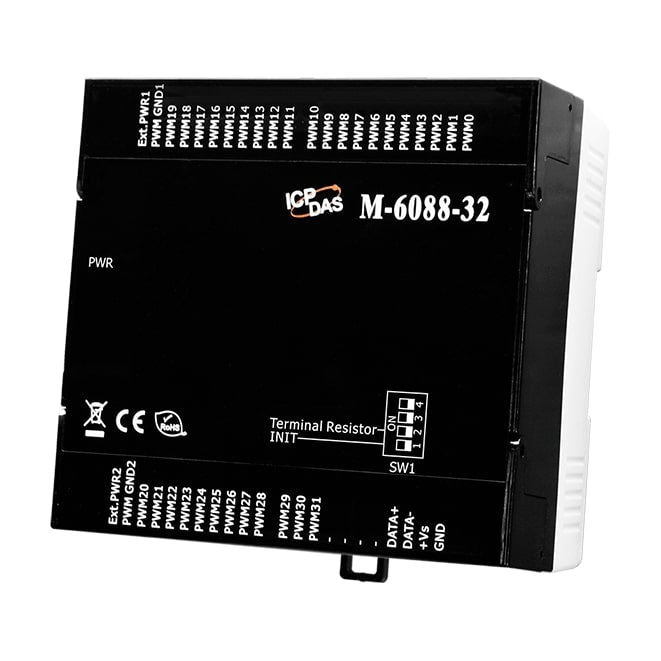

M-6088-32

Name: M-6088-32
Brand: ICP DAS
SKU: 09592400
Availability: InStock

ICP DAS

Ціна за запитом

32-channel PWM Output Module using the DCON and Modbus Protocols (RoHS), 5-40VDC

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Interfaces
RS-485	1
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Digital Output
Channels	16
Signal Type	PWM: Source
Output frequency range	0~50 Hz
Output Voltage	40 V
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...48 V
Dimensions and weight
Width	120 mm
Depth	116 mm
Height	64 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
Certifications	CE, FCC
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
