M-7004

Name: M-7004
Brand: ICP DAS
SKU: 07635600
Availability: InStock

ICP DAS

Ціна за запитом

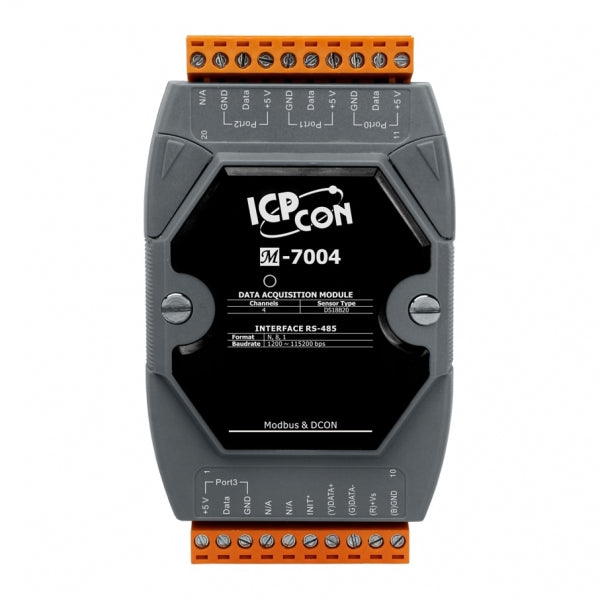

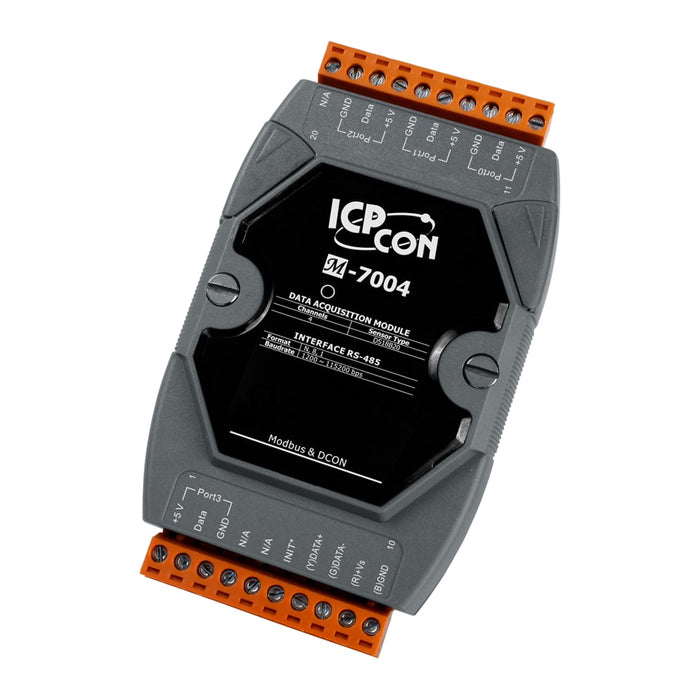

4-port Digital Temperature Sensor Module with Daisy-Chain Wiring, Modbus RTU

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Interfaces
RS-485	1
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Analog Input
Total channels of analog input	4
Number of Bits	12 Bit
Sampling rate	1 Hz
Differential channels	4
Connectors
Connectors	Screw Terminal
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...48 V
Dimensions and weight
Width	72 mm
Depth	35 mm
Height	123 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
