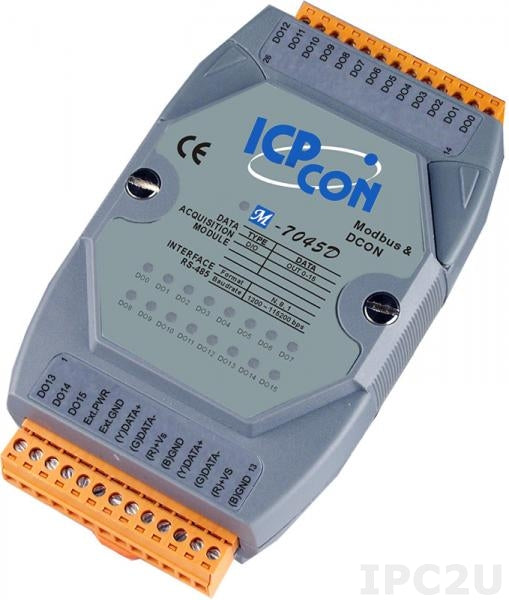

M-7045D

Ціна за запитом
16-Channel Isolated Digital Output Module with Indication, Modbus

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall, DIN-Rail mount

Display

Display TypeLED Display

Interfaces

RS-4851

Supported Protocols

Industrial ProtocolsModbus RTU slave, DCON slave

Digital Output

Total channels of digital output16
TypeMOSFET
Sink/SourceSource
Output voltage10~40 V
Max. load current650 mA

Connectors

ConnectorsScrew Terminal

Additional Functions

Watchdog timer typeHardware, Software

System Power Input

Input Voltage DC10...30 V

Dimensions and weight

Width72 mm
Depth35 mm
Height123 mm

Operating Conditions

Operating Temperature-25...75 °C

Standards and Certifications

EMSIEC 61000-4-2, IEC 61000-4-4
