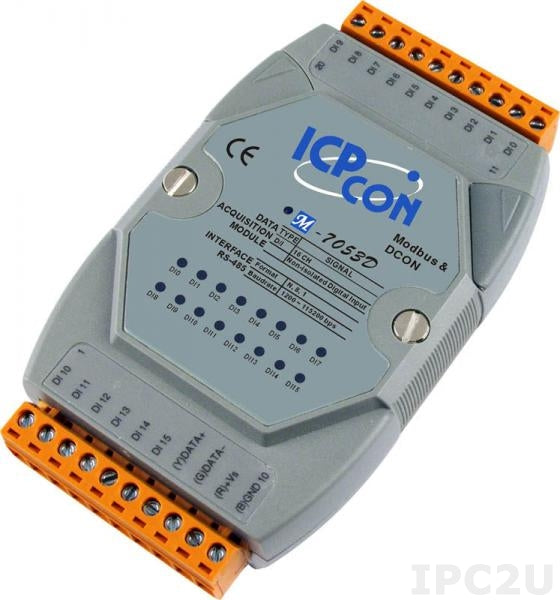

M-7053D-G

Name: M-7053D-G
Brand: ICP DAS
SKU: 02917200
Availability: InStock

ICP DAS

Ціна за запитом

16-ch Non-isolated (Dry) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Display
Display Type	LED Display
Digital Input
Total channels of digital input	16
Type	Dry contact
Sink/Source	Source
Counter capacity	16 Bit
Max frequency	0.1 kHz
Counter	100Hz, 16 bit
Interfaces
RS-485	1
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Connectors
Connectors	Screw Terminal
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...30 V
Dimensions and weight
Width	72 mm
Depth	35 mm
Height	123 mm
Operating Conditions
Operating Temperature	-25...75 °C
