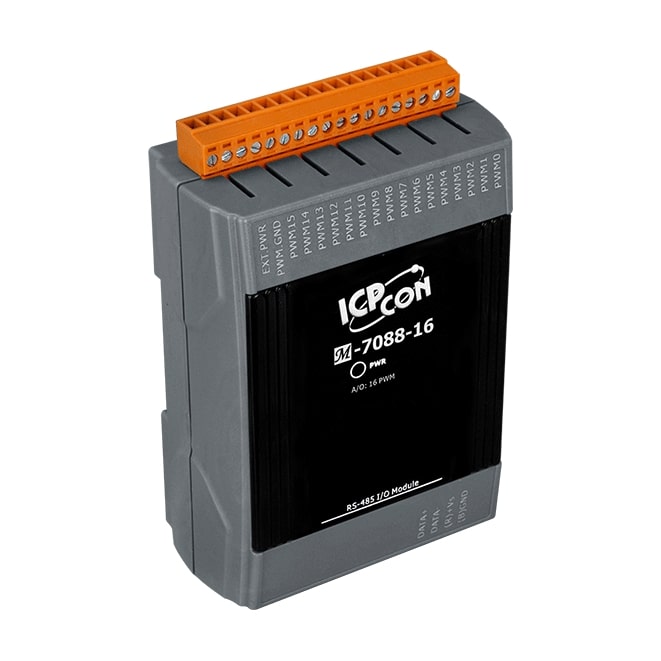

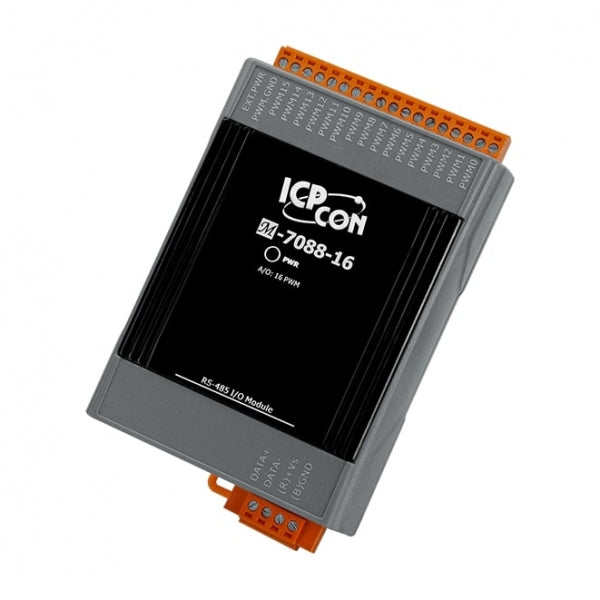

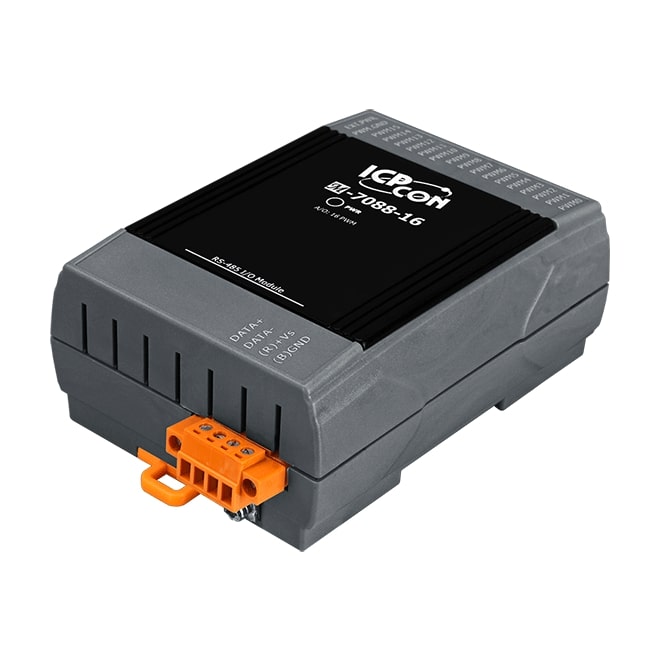

M-7088-16-G

Name: M-7088-16-G
Brand: ICP DAS
SKU: 09411100
Availability: InStock

ICP DAS

Ціна за запитом

16-channel 5-50VDC PWM Output Module using the DCON and Modbus Protocols (Gray Cover) (RoHS), 10-48VDC-in

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Wall, DIN-Rail mount
Interfaces
RS-485	1
Supported Protocols
Industrial Protocols	Modbus RTU slave, DCON slave
Digital Output
Channels	16
Signal Type	PWM: Source
Output frequency range	1~500000 Hz
Output Voltage	5 V
Connectors
Connectors	Screw Terminal
Additional Functions
Watchdog timer type	Hardware, Software
System Power Input
Input Voltage DC	10...48 V
Dimensions and weight
Width	76 mm
Depth	42 mm
Height	121 mm
Operating Conditions
Operating Temperature	-25...75 °C
Standards and Certifications
EMS	IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
