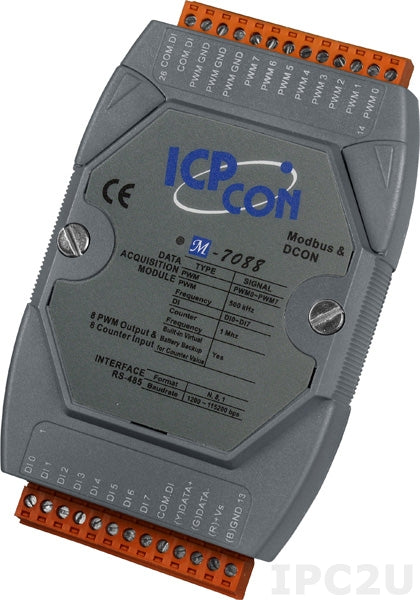

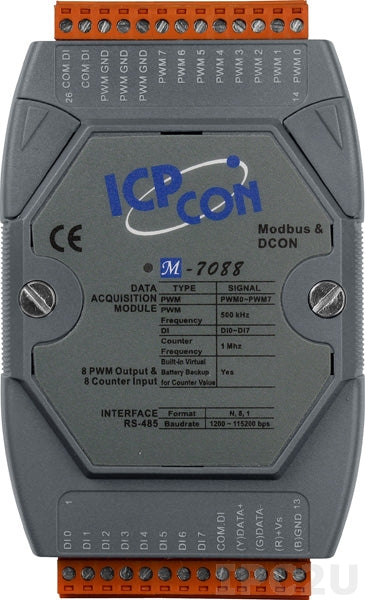

M-7088/S

M-7088/S

ICP DAS
Ціна за запитом

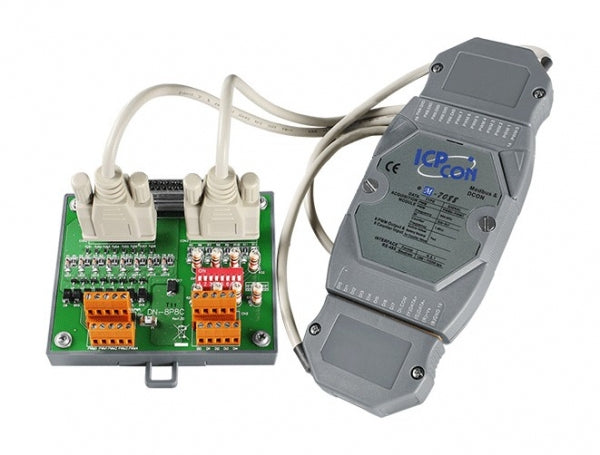

8-Channel PWM Output and 8-Channel High Speed Counter Module, Modbus, with DN-8P8C-CA External Board

Specification

Construction

Construction ChassisPlastic Chassis
Mounting ConfigurationWall, DIN-Rail mount

Interfaces

RS-4851

Supported Protocols

Industrial ProtocolsModbus RTU slave, DCON slave

Digital Input

Number of channels8
Counter capacity32 Bit
Max frequency1 kHz

Digital Output

Channels8
Signal TypePWM: Source
Output frequency range0~500 kHz
Output Voltage5 V

Connectors

ConnectorsScrew Terminal

Additional Functions

Watchdog timer typeHardware, Software

System Power Input

Input Voltage DC10...30 V

Dimensions and weight

Width72 mm
Depth35 mm
Height123 mm

Operating Conditions

Operating Temperature-25...75 °C

Files

Documentation

📄 I-7080(D)_M-7080(D)_I-7080B(D)_M-7080B(D)_I-7083(D)_I-7083B(D)_M-7084_I-7088_M-7088_Datasheet

📄 Modbus address mapping

📄 I-7088(D), M-7088(D) datasheet
