Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Panel, Wall VESA 75 |
| Protection Level of Chassis | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 10.1 " |
| Maximum resolution | 1280x800 Dots |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 800~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | ARM Cortex-A53 |
| Max CPU frequency | 1.5 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 2 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| PoE 10/100/1000 Mbit/s | 1 |
Wi-Fi | |
| Wi-Fi Standard | 802.11ac/a/b/g/n |
Interfaces | |
| USB Total | 3 |
| USB 2.0 | 3 |
Drive interfaces | |
| MicroSD | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 16 GB |
LED / Controls | |
| LED | Power LED, PoE LED |
| Controls | On/Off, 1xReset, Volume Keys |
Connectors | |

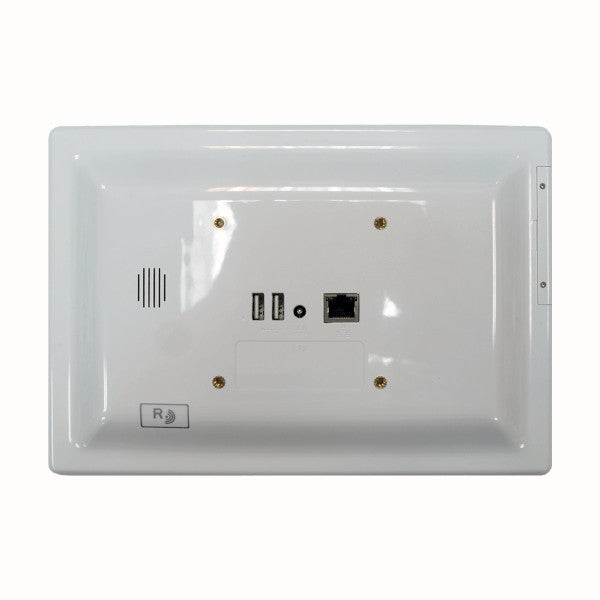

| Connectors | RJ45 Ethernet, 2xUSB, 1xMicro USB, MicroSD card slot, Line Out |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Android |
| Operating System Installed | Android |
Dimensions and weight | |
| Width | 248.5 mm |
| Height | 174.5 mm |
| Depth | 23.8 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Humidity | 5-85% |
| Vibration | 1 Grms/ 5 ~ 500Hz/ random operation |
| Shock | 10G/ peak (11ms) |
Standards and Certifications | |
| Certifications | CE, FCC |
