Construction | |
| Construction Chassis | Plastic Chassis |

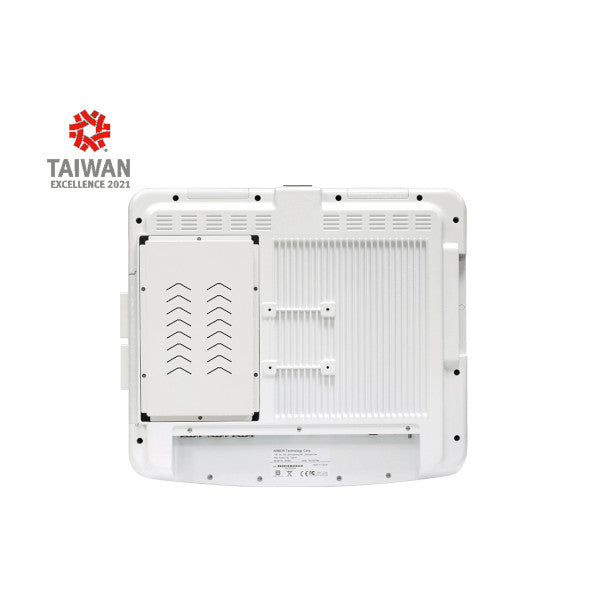

| Mounting Configuration | Panel, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 19 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 5:4 |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 1000~1 |
| Input Interface | DisplayPort |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Kaby Lake |
| Processor Installed | Intel Core i5-7440EQ |
| Socket | FCBGA1440 |
| Max CPU frequency | 2.9 GHz |
Chipset | |
| Chipset | Intel Kaby Lake SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11ac/a/b/g/n |
Interfaces | |
| COM Total | 3 |
| RS-232 | 2 |
| RS-232/422/485 | 1 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
| SD Slots | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| Drive Interface | PCIe x4 |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 1 |
| M.2 | 1 |
| M.2 Form Factor | 2280 M |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, 1xReset, Function Keys, Volume Keys |
Connectors | |

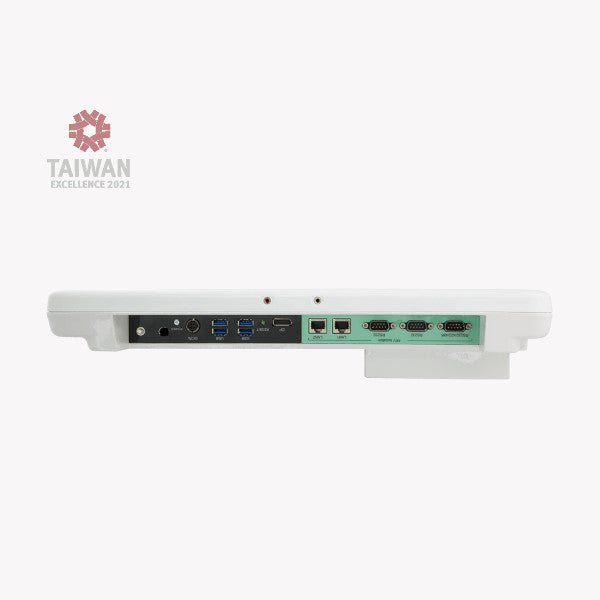

| Connectors | 3xDB9, 2xRJ45 Ethernet, 5xUSB, Mic In, Line Out, Display Port, SD card slot |
System Power Input | |
| Input Voltage DC | 12...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 100 W |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Ubuntu |
Dimensions and weight | |
| Width | 450 mm |
| Height | 399.4 mm |
| Depth | 59 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
| Humidity | 10-95% |
| Vibration | 5 ~ 500Hz. 1G random operation (SSD only) |
| Shock | 10G peak (11m/sec) |
Standards and Certifications | |
| Certifications | CE, FCC |
