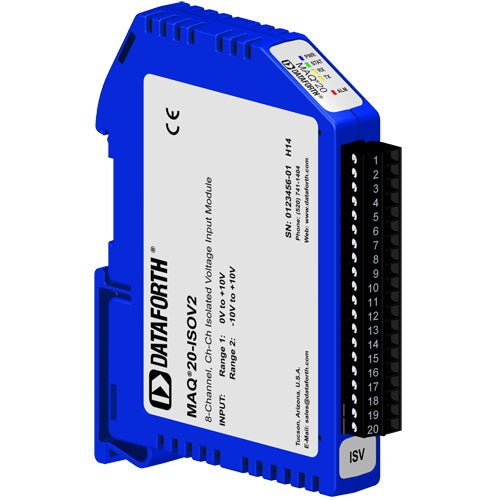

MAQ20-ISOV2

Name: MAQ20-ISOV2
Brand: Dataforth
SKU: 09515000
Availability: InStock

Dataforth

Ціна за запитом

Isolated Analog Voltage Input Module, 8 isolated input channels, +/-10V

Специфікація

Specification

Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	DIN-Rail mount
Analog Input
Total channels of analog input	8
Voltage range	+/-10 V, 0...10 V
Single-Ended channels	8
Connectors
Connectors	Pin Header
Dimensions and weight
Width	15.3 mm
Depth	82.8 mm
Height	114.6 mm
Operating Conditions
Operating Temperature	-40...85 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
