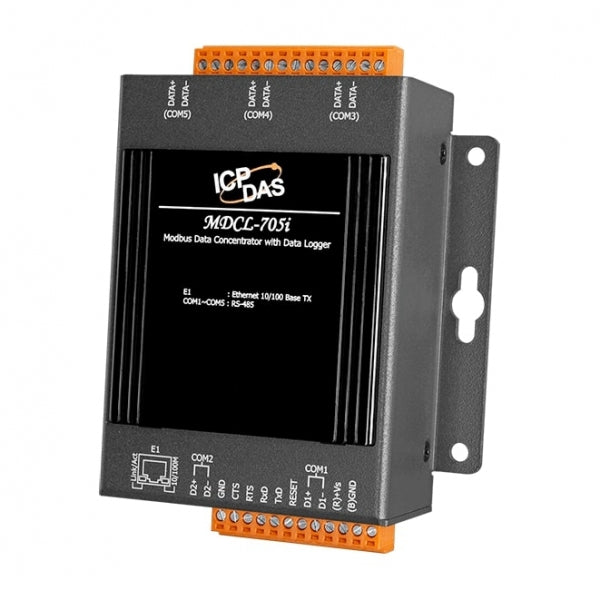

MDCL-705i

Name: MDCL-705i
Brand: ICP DAS
SKU: 09481400
Availability: InStock

ICP DAS

Ціна за запитом

Modbus Data Concentrator with Ethernet, RS-485 Serial Ports and Data Logger, +10...+48VDC-in

Специфікація

Specification

Ethernet
Total Ethernet	1
10/100 Mbit/s	1
Interfaces
COM Total	5
RS-485	5
Isolation of COM Ports	2.5 kV (RS-485)
Supported Protocols
Industrial Protocols	Modbus TCP server, Modbus RTU slave, Modbus RTU master
System Power Input
Input Voltage DC	10...48 V
Operating Conditions
Operating Temperature	-25...75 °C
Construction
Construction Chassis	Metal Chassis
Mounting Configuration	Wall, DIN-Rail mount
Dimensions and weight
Width	97 mm
Depth	42 mm
Height	120 mm

Документація
