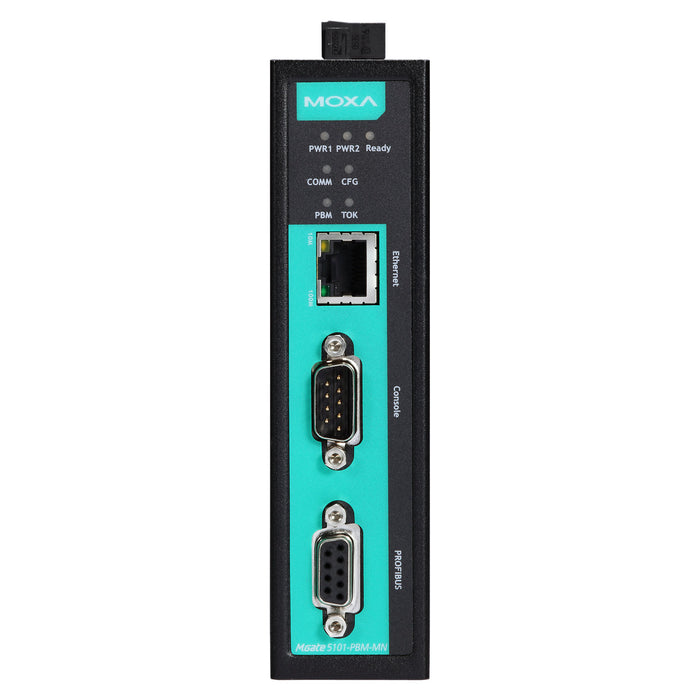

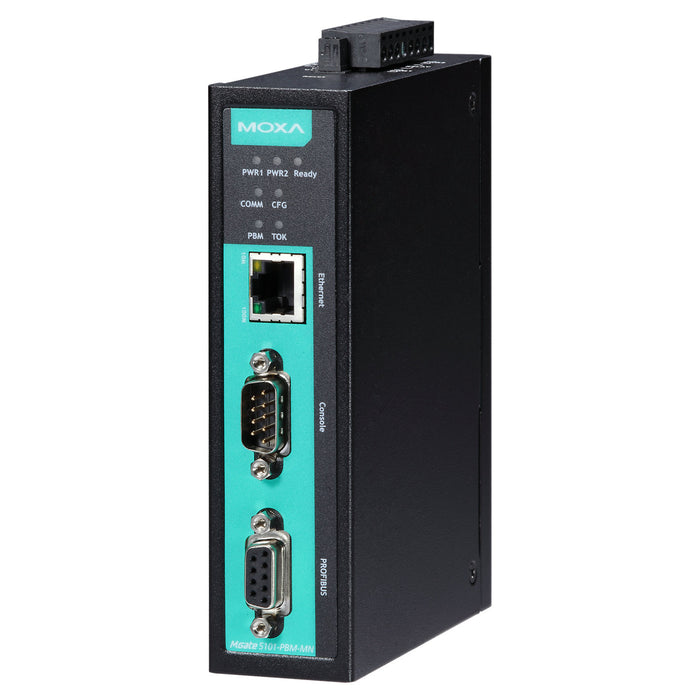

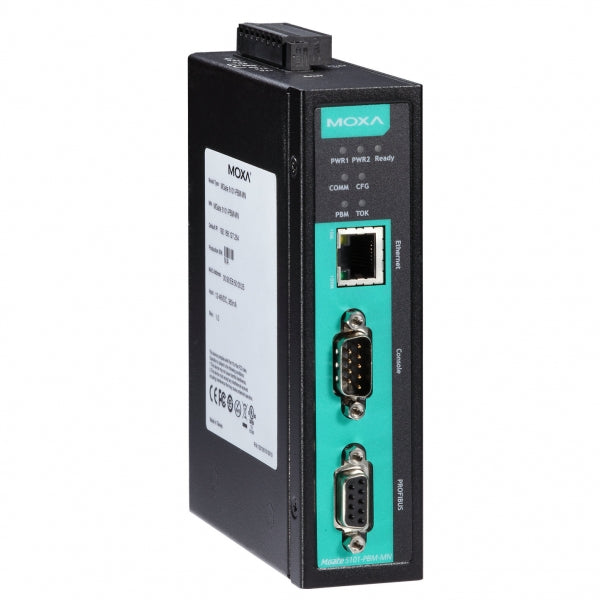

MGate 5101-PBM-MN

Ціна за запитом
1-port PROFIBUS DP Master-to-Modbus TCP gateway, 12-48 VDC, 0 to +60C operating temperature

Ethernet

Total Ethernet 1
10/100 Mbit/s 1

Interfaces

COM Total 1

Industrial Interfaces

Profibus DP Version 1

Supported Protocols

Industrial Protocols Modbus TCP server, Modbus TCP client, Profibus master

LED / Controls

LED 10/100M LED, READY LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode Telnet, Console Port, Web-interface
Controls 1xReset

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 48 V
Power Supply Reserve input Voltage DC Min 12 V
Power Supply Reserve input Voltage DC Max 48 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 60 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount
Protection Level of Chassis IP30

Dimensions and weight

Width 36 mm
Depth 140 mm
Height 105 mm

Standards and Certifications

Certifications CE, FCC
Explosion safety IECEx
Freefall IEC 60068-2-32
Oil And Gas ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety UL 60950-1, EN 60950-1
Vibration And Shock IEC 60068-2-27, IEC 60068-2-64
