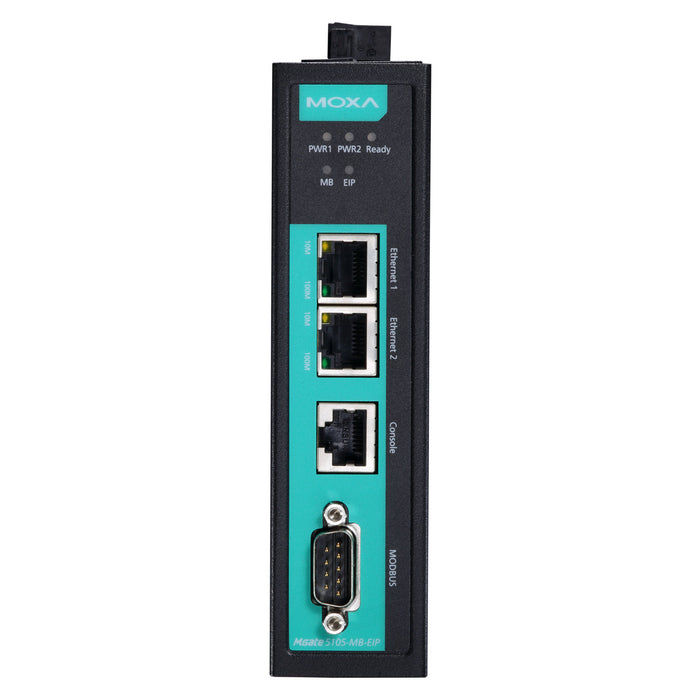

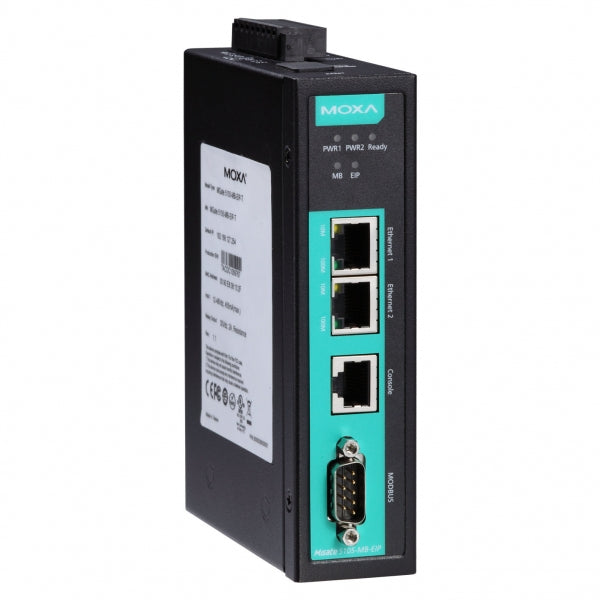

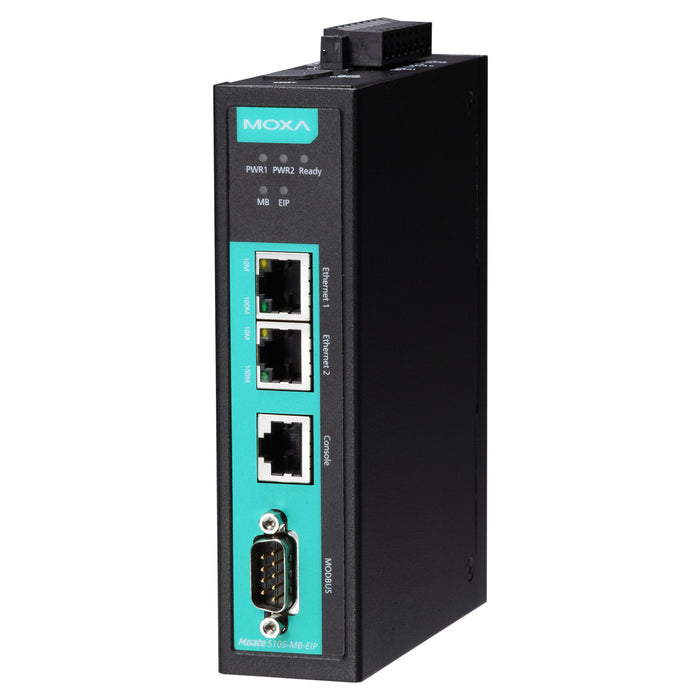

MGate 5105-MB-EIP

Ціна за запитом
1-port Modbus-to-EtherNet/IP gateway, 0 to 60C operating temperature

Ethernet

Total Ethernet 2
10/100 Mbit/s 2

Interfaces

COM Total 1
RS-232/422/485 1
Isolation of COM Ports 2 kV (RS-232/422/485)

Supported Protocols

Industrial Protocols EtherNet/IP adapter, EtherNet/IP scanner, Modbus TCP server, Modbus TCP client, Modbus RTU slave, Modbus RTU master, Modbus ASCII slave, Modbus ASCII master, MQTT client, EtherNet/IP, Modbus TCP, MQTT

LED / Controls

LED 10/100M LED, READY LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode Telnet, Console Port, Web-interface
Controls 1xReset

Connectors

Connectors Console Port RS-232 (RJ-45), MicroSD card slot

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 48 V
Power Supply Reserve input Voltage DC Min 12 V
Power Supply Reserve input Voltage DC Max 48 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 60 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration Wall, DIN-Rail mount
Protection Level of Chassis IP30

Dimensions and weight

Width 36 mm
Depth 140 mm
Height 105 mm

Standards and Certifications

Certifications CE, FCC
Explosion safety IECEx
Freefall IEC 60068-2-32
Oil And Gas ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety UL 508, EN 60950-1
Vibration And Shock IEC 60068-2-27, IEC 60068-2-64
